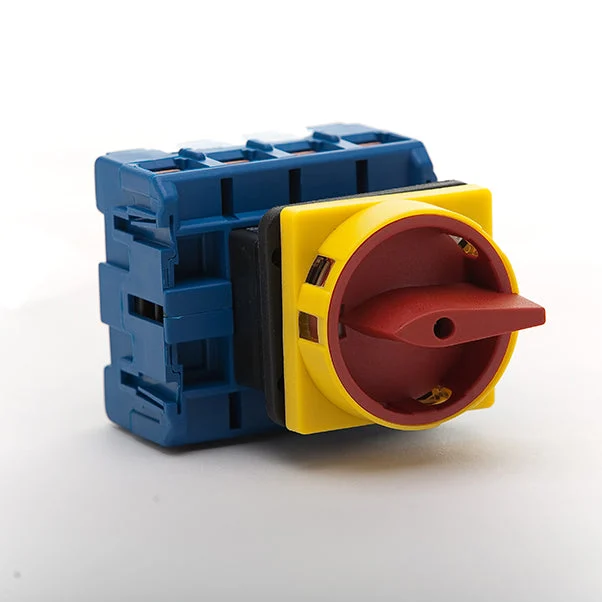

Kraus & Naimer KG100 load breaker, version as emergency stop device, 1 switch, max. Rated operating voltage Ue at A 690V, rated continuous current Iu 100A, rated continuous current, AC-23, 400 V 100A, rated continuous current, AC-21, 400 V 100A, rated power at AC-3, 400 V 30kW.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Number of switches : 1
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 0 V to 0 V
Rated permanent current Iu (A) : 100
Rated permanent current at AC-23, 400 V (A) : 100
Rated permanent current at AC-21, 400 V (A) : 100
Rated operation power at AC-3, 400 V (kW) : 30
Rated short-time withstand current lcw (kA) : 1.85
Rated operation power at AC-23, 400 V (kW) : 37
Switching power at 400 V (kW) : 37
Conditioned rated short-circuit current Iq (kA) : 15
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : Yes
Suitable for front mounting center : No
Suitable for distribution board installation : No
Suitable for intermediate mounting : No
Color control element : Red
Type of control element : Toggle
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP66
Degree of protection (NEMA) : Other
