About this item
- Turn key to ON Position and remains in ON position (key will pull out)
- Universal key switch. Will work with all gate and garage door openers
- Stainless steel plate accepts standard 19mm (3/4″) barrel
- Switch Rated Current: 4A 125V AC, 2A 250V AC; Indicator Rated Voltage: DC 12V
- The indicator would not light off when turning on or off the switch
Description:

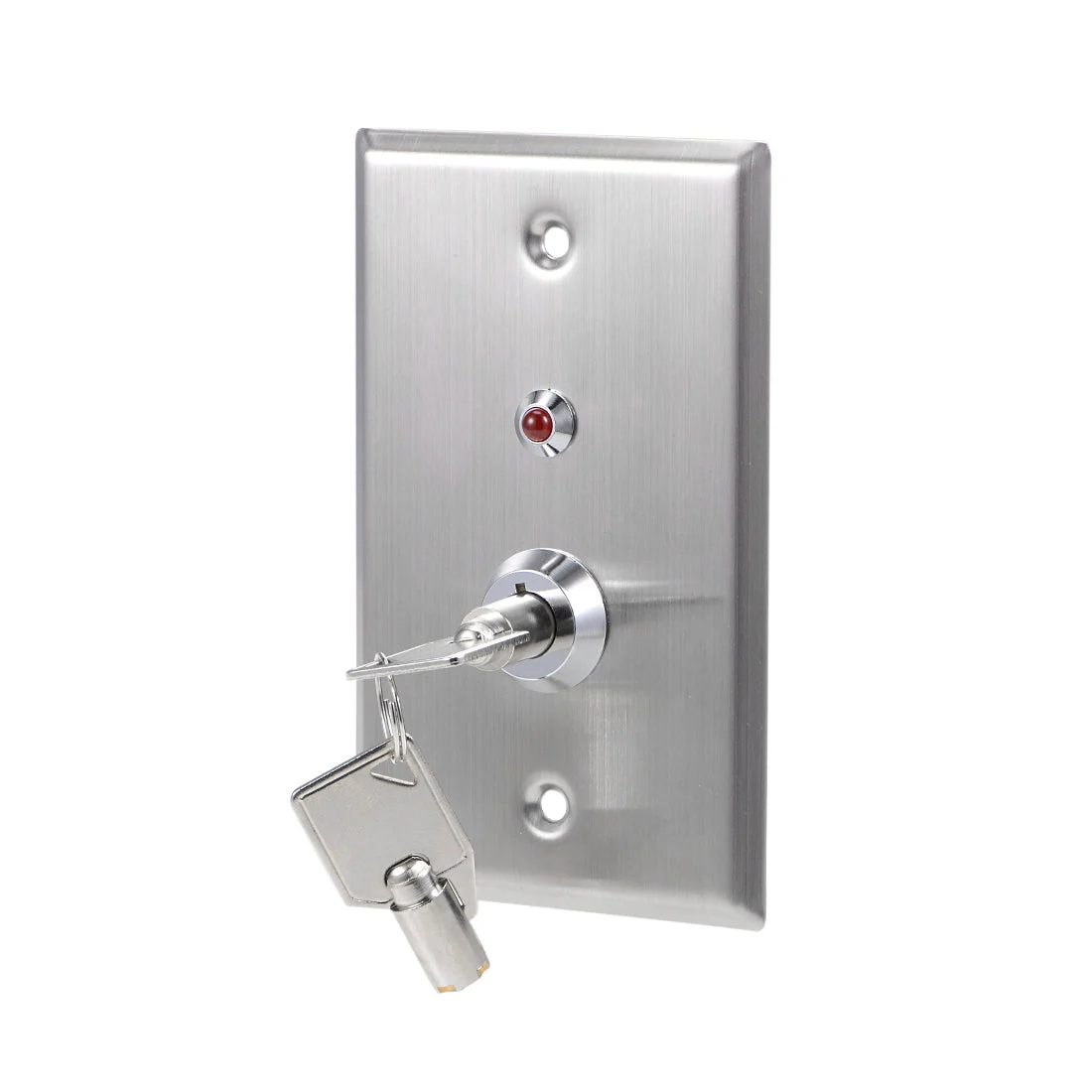

-This key switch is an emergency switch button with a special mechanical key for emergency situations.
-Exit switches come in handy when one wants to regulate the comings and goings of people.
-19mm key switch lock with 2 keys, nice smooth action and easy to mount.
-Key is removable in both ON and OFF positions.
-The indicator would not light off when turning on or off the switch.
-Anti-disassembly signal output.
Specification:
Panel Material: 304 Stainless Steel
Switch Rated Power: 4A 125V AC / 2A 250V AC
Indicator Rated Voltage: DC 12V
Type: SPST
Contacts Type: 1 NO, 1 NC, 1 COM, 2 TAMP
Panel Size: 115 x 70mm / 4.53″ x 2.76″ (L*W)
Mounting Cut Hole: 54 x 36mm / 2.13″ x 1.42″ (L*W)
Panel Mounting Hole Diameter: 4.5mm / 0.18″
Panel Mounting Hole Distance: 83mm / 3.27″
Package Content:
1 x Key Operated Switch
2 x Keys
2 x Mounting Screws
