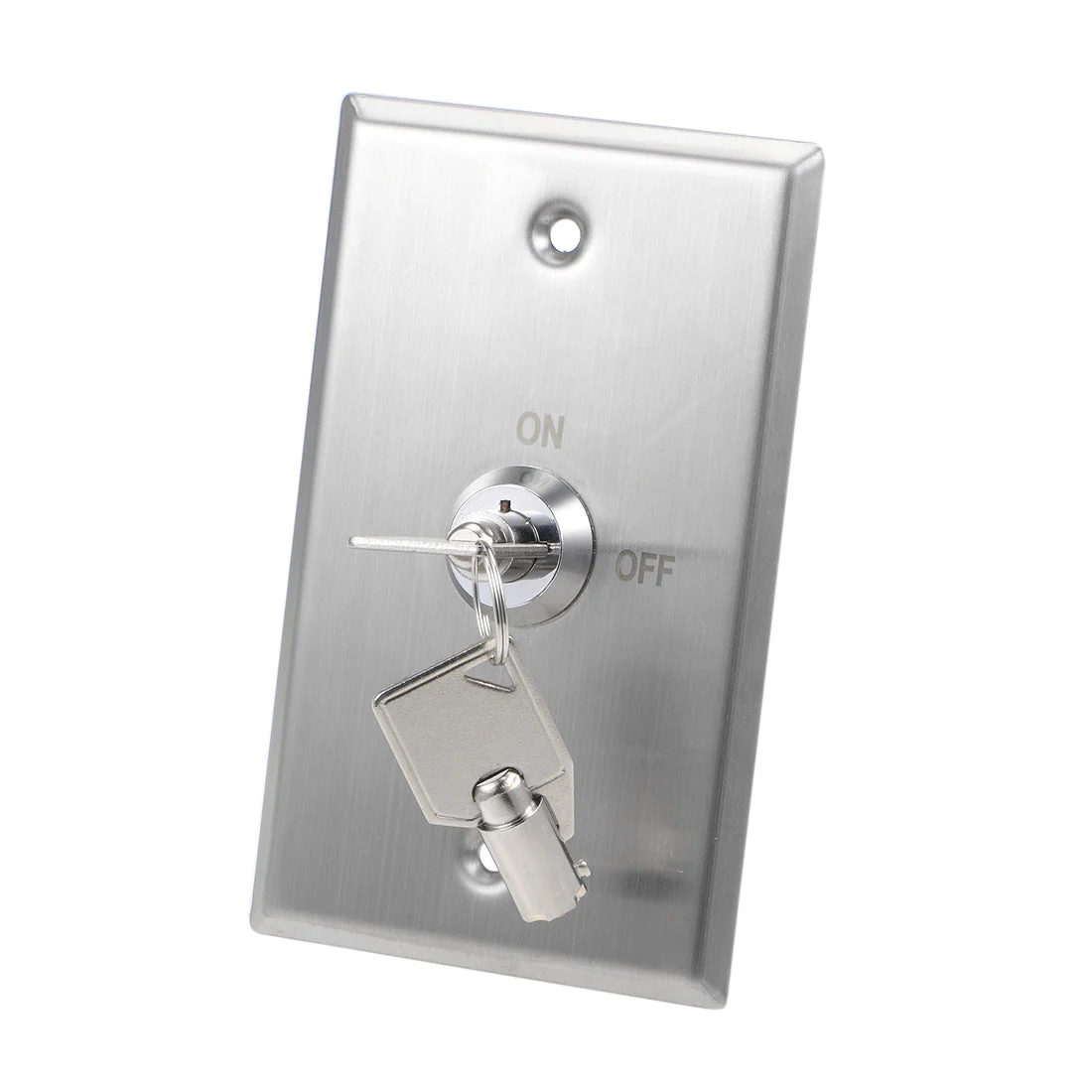

Key Switch Lock On/Off Exit Switch Emergency Door Release SPST Panel Mount with 2 Keys

About this item

• Key is removable in both ON and OFF positions.
• Universal key switch. Will work with all gate and garage door openers
• Stainless steel plate accepts standard 19mm (3/4″) barrel
• Rated Current: 4A 125V AC, 2A 250V AC
• Switch terminals are colored for recognition

Description:

-This key switch is an emergency switch button with a special mechanical key for emergency situations.

-19mm key switch lock with 2 keys, nice smooth action and easy to mount.

-Key is removable in both ON and OFF positions.

Specification:

Panel Material: 304 Stainless Steel

Rated Power: 4A 125V AC / 2A 250V AC

Type: SPST

Contacts Type: 1 NO, 1 NC, 2 COM

Cable Length: 20mm / 0.79″

Panel Size: 115 x 70mm / 4.53″ x 2.76″ (L*W)

Mounting Cut Hole: 19mm / 3/4″

Panel Mounting Hole Diameter: 4.5mm / 0.18″

Panel Mounting Hole Distance: 83mm / 3.27″

Package Content:

1 x Key Operated Switch

2 x Keys

2 x Mounting Screws
