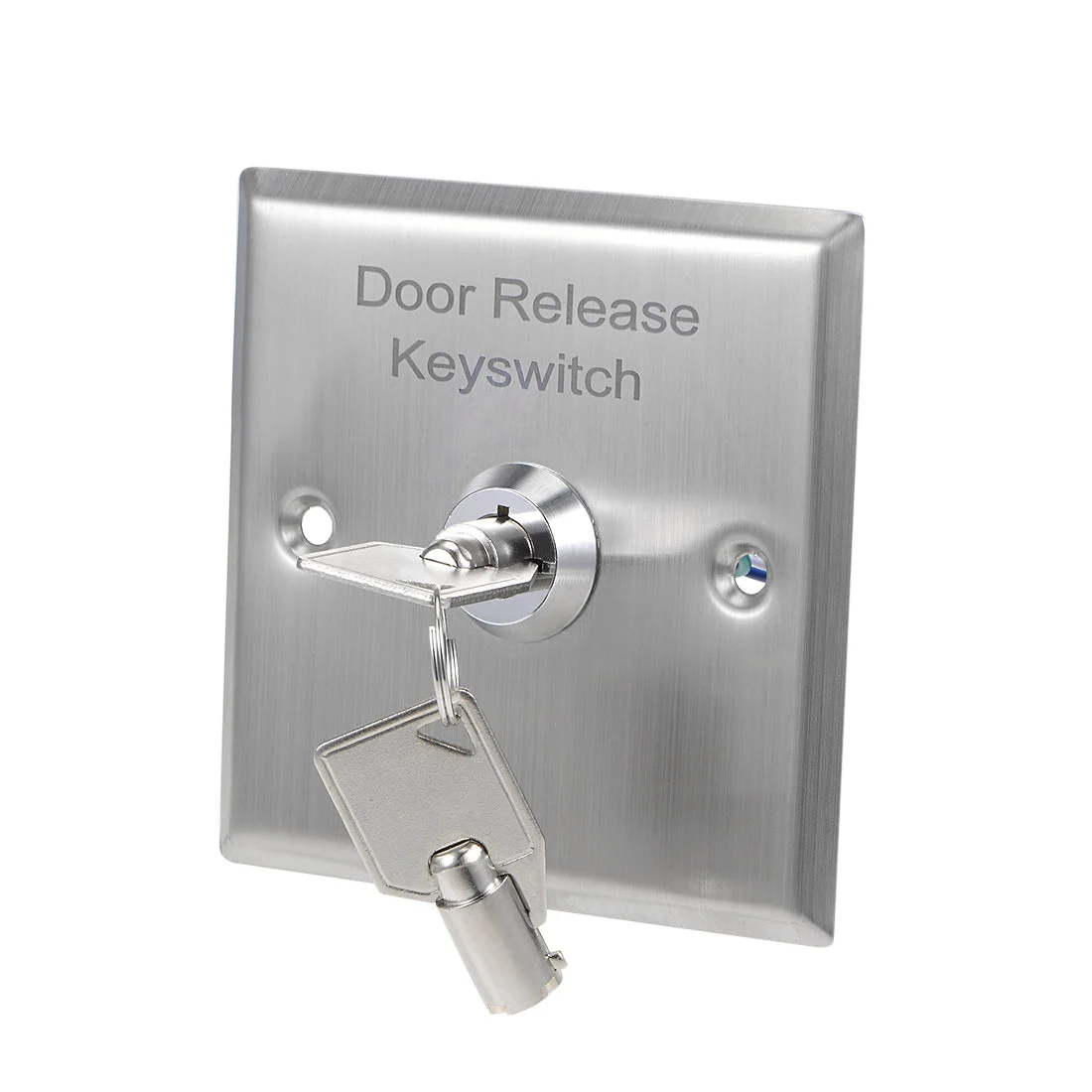

Key Lock Switch On/Off Exit Switches Emergency Door Release SPST for Access Control Panel Mount with 2 Keys

About this item

• Key is removable in both ON and OFF positions.
• Universal key switch. Will work with all gate and garage door openers
• Stainless steel plate accepts standard 19mm (3/4″) barrel
• Rated Current: 4A 125V AC, 2A 250V AC
• Switch terminals are colored for recognition

Description:

-This key switch is an emergency switch button with a special mechanical key for emergency situations.

-19mm key switch lock with 2 keys, nice smooth action and easy to mount.

-Key is removable in both ON and OFF positions.

Specification:

Panel Material: 304 Stainless Steel

Rated Power: 4A 125V AC / 2A 250V AC

Type: SPST

Contacts Type: 1 NO, 1 NC

Cable Length: 20mm / 0.79″

Panel Size: 86 x 86mm / 3.39″ x 3.39″ (L*W)

Mounting Cut Hole: 19mm / 3/4″

Panel Mounting Hole Diameter: 4.5mm / 0.18″

Panel Mounting Hole Distance: 60mm / 2.36″

Package Content:

1 x Key Operated Switch

2 x Keys

2 x Mounting Screws
