Jung WG800 Venetian Blind Switch – 834.28G

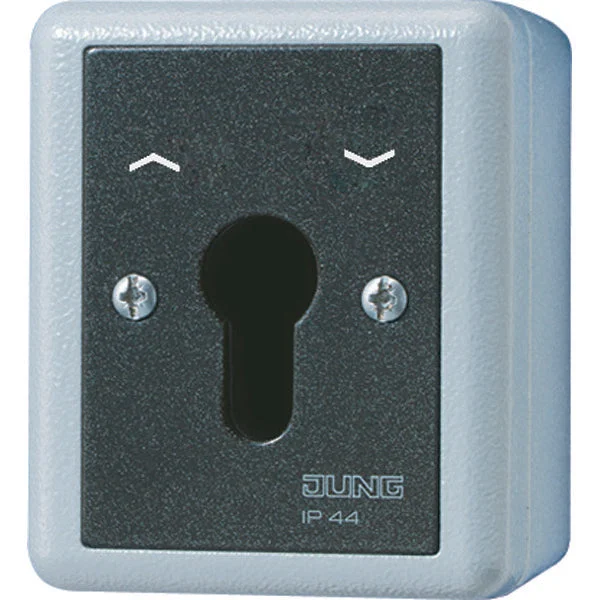

This key switch from Jung’s WG 800 series is suitable as a blind turn impulse switch. Key switching is used to secure switching. Combine this louvered rotary encoder with a profile half cylinder of approx. 40 mm total length (DIN 18 252), such as anan number 28 or 28 G1. The key switch has 1 introduction M20 x 1.5 below, with PE clamp. Furthermore, the key switch of this control switch is gray in color and the cover has an anthracite color. Please note that this key switch comes without a locking plate and without a cylinder lock.

Specifications

Assembly arrangement : Basic element with complete housing
Model : 2-pole push button
Number of poles : 2
Method of operation : Key
Electrical and mechanical locking : No
Mechanical controllable : Yes
Electronic controllable : No
Mounting method : Surface mounted (plaster)
Material : Metal
Material quality : Aluminum
Halogen free : Yes
Surface protection : Lacquered
Surface finishing : Matt
Type of fastening : Mounting with screw
Connection type : Screwed terminal
Color : Grey
RAL-number (similar) : 7035
Transparent : No
Label space/information surface : No
Suitable for degree of protection (IP) : IP44
Rated current (A) : 10
Nominal voltage (V) : 250
Min. depth of built-in installation box (mm) : 0
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
