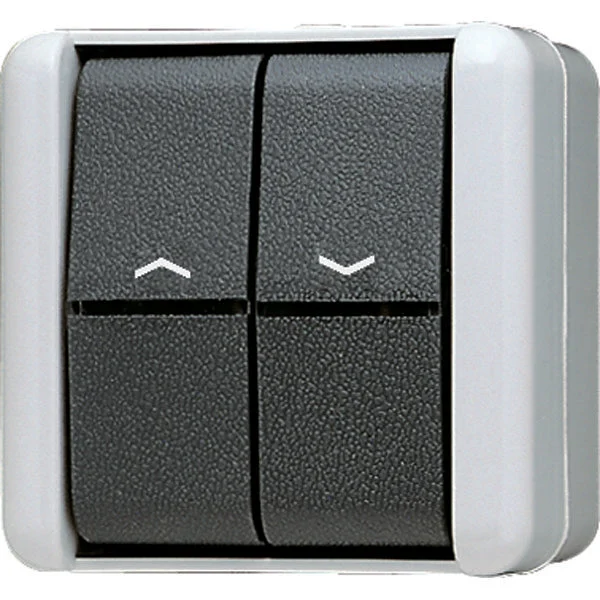

This blind switch from Jung’s WG 800 series has two control dials and is suitable for switching an electric motor in both directions. The arrows on the rockers of the blind switch indicate the direction of switching. With reversing lock. Furthermore, the blind switch has an IP44 protection rating and a gray color.
Specifications
Assembly arrangement : Basic element with complete housing
Model : 1-pole switch
Number of poles : 1
Method of operation : Rocker
Electrical and mechanical locking : No
Mechanical controllable : Yes
Electronic controllable : No
Mounting method : Surface mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Other
Surface finishing : Glossy
Type of fastening : Mounting with screw
Connection type : Push-in clamp
Color : Grey
RAL-number (similar) : 7035
Transparent : No
Label space/information surface : No
Suitable for degree of protection (IP) : IP44
Rated current (A) : 10
Nominal voltage (V) : 250
Number of buttons : 2
Min. depth of built-in installation box (mm) : 0
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
