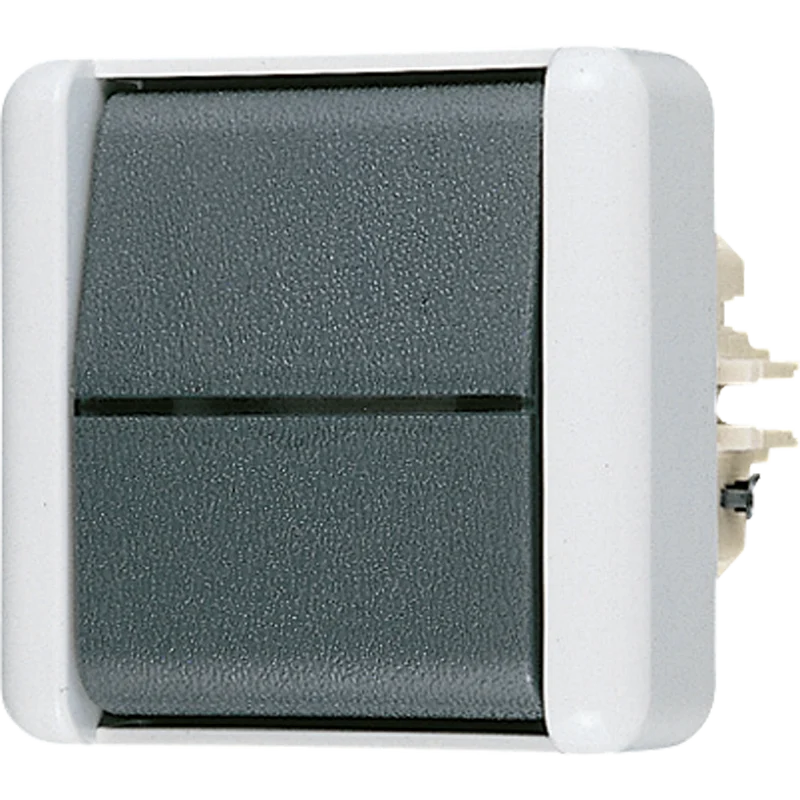

Jung WG800 Installation Switch – 807E

This switch from Jung’s WG 800 series is a rocker switch that can be used as a cross switch to control a light point in three or more locations. For a cross circuit, you need one cross switch and two changeover switches. Furthermore, the housing of this cross switch is gray in color and the control rocker has an anthracite color. Note: this switch is only a top part and must still be combined with a base. An under tray should be ordered separately.

Specifications

Wiring system : Intermediate switch
Method of operation : Rocker/button
Assembly arrangement : Basic element with housing top
Push button switch : No
Number of rockers : 1
Mounting method : Surface mounted (plaster)
Type of fastening : Screw mounting
With mounting plate : No
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Other
Surface finishing : Glossy
Color : Grey
RAL-number (similar) : 7035
Label space/information surface : No
Illumination : Optional
Function lighting : Orientation
Type of lighting : LED exchangeable
Suitable for degree of protection (IP) : IP44
Nominal voltage (V) : 250
Switching current for fluorescent lamps (AX) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Washing machine switch : No
Width of device (mm) : 60
Height of device (mm) : 70
