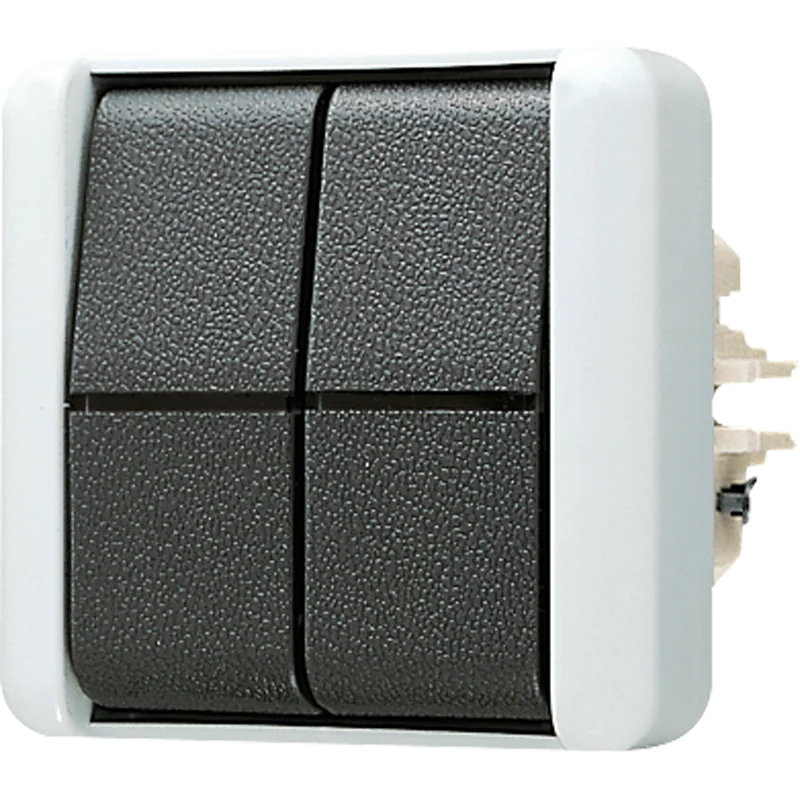

This switch from Jung’s WG 800 series is a rocker switch that can be used as a series switch to control two different light points at the same location. Furthermore, the housing of this series switch is gray in color and the control switches have an anthracite color. Note: this switch is only a top part and must still be combined with a base. An under tray should be ordered separately.
Specifications
Wiring system : Series switch
Method of operation : Rocker/button
Assembly arrangement : Basic element with housing top
Push button switch : No
Number of rockers : 2
Mounting method : Surface mounted (plaster)
Type of fastening : Screw mounting
With mounting plate : No
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Surface protection : Other
Surface finishing : Glossy
Color : Grey
RAL-number (similar) : 7035
Label space/information surface : No
Illumination : Optional
Function lighting : Orientation
Type of lighting : Incandescent lamp
Suitable for degree of protection (IP) : IP44
Nominal voltage (V) : 250
Switching current for fluorescent lamps (AX) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Washing machine switch : No
Width of device (mm) : 60
Height of device (mm) : 70
