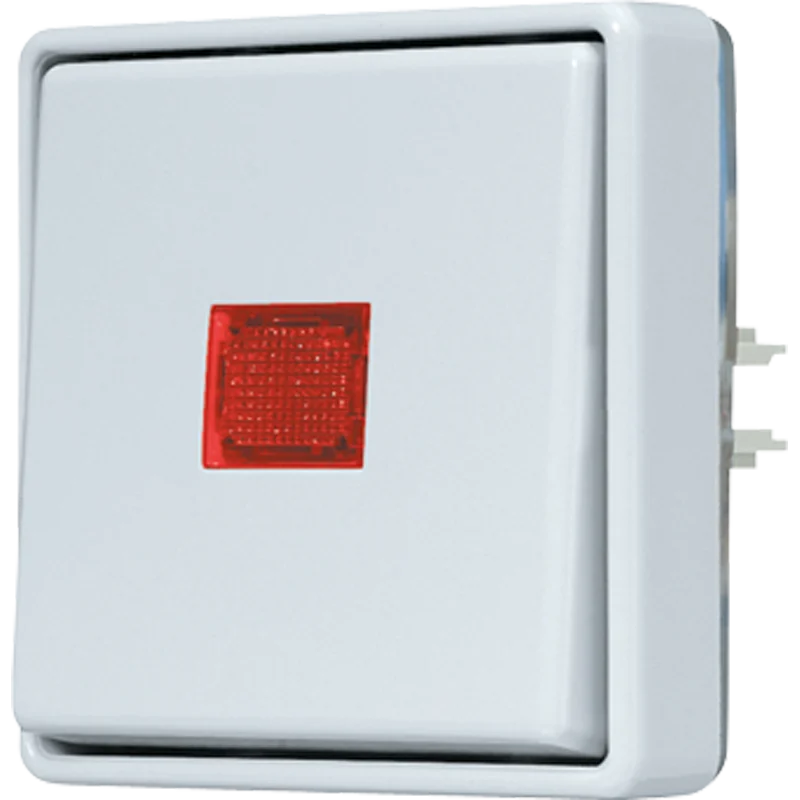

This switch from Jung’s WG 600 series is rocker switch that can be used as a 1-pole control switch or changeover control switch for controlling the same light point in two different locations. For such a changeover, you need two switches. The indicator light on this rocker control switch indicates whether the light is on or off. The glow lamp (anan number 90) is includedeler. Also, the switch has a red insert (anan number 33 NR). Furthermore, the switch has a gray color.
Specifications
Wiring system : Two-way switch
Method of operation : Rocker/button
Assembly arrangement : Basic element with housing top
Push button switch : No
Number of rockers : 1
Mounting method : Surface mounted (plaster)
Type of fastening : Screw mounting
With mounting plate : No
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Color : Grey
RAL-number (similar) : 7035
Label space/information surface : No
Illumination : Yes
Function lighting : Control and orientation
Type of lighting : Glow lamp
Suitable for degree of protection (IP) : IP44
Nominal voltage (V) : 250
Switching current for fluorescent lamps (AX) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Washing machine switch : No
Width of device (mm) : 70
Height of device (mm) : 68
