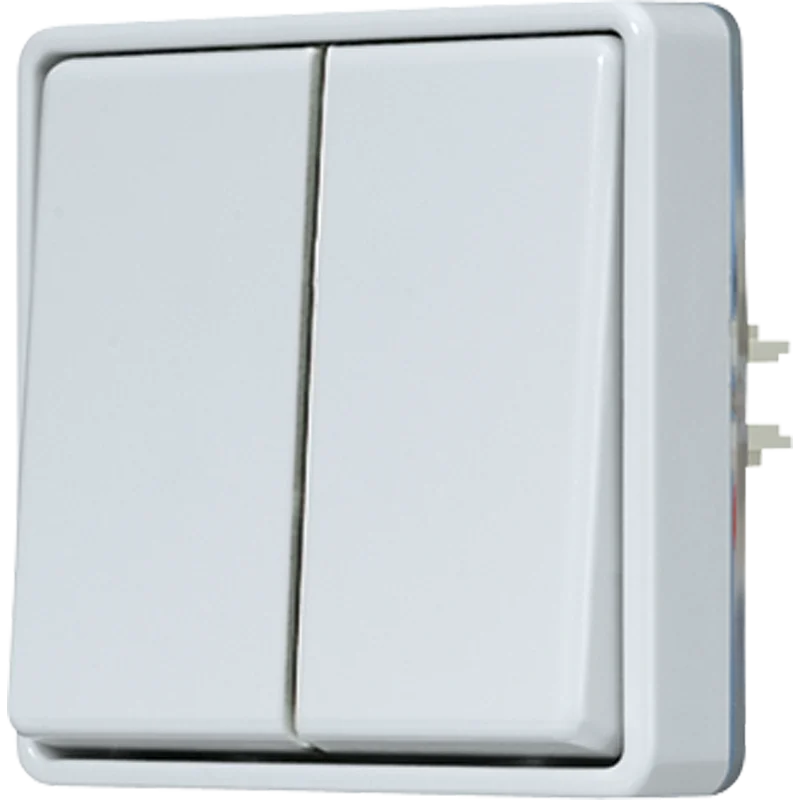

This switch from Jung’s WG 600 series is a rocker switch that can be used as a series switch to control two different light points at the same location. Furthermore, the switch has a gray color. Please note that this switch is only a top part and still needs to be combined with a base. An under tray should be ordered separately.
Specifications
Wiring system : Series switch
Method of operation : Rocker/button
Assembly arrangement : Basic element with housing top
Push button switch : No
Number of rockers : 2
Mounting method : Surface mounted (plaster)
Type of fastening : Screw mounting
With mounting plate : No
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Color : Grey
RAL-number (similar) : 7035
Label space/information surface : No
Illumination : Optional
Function lighting : Orientation
Type of lighting : Incandescent lamp
Suitable for degree of protection (IP) : IP44
Nominal voltage (V) : 250
Switching current for fluorescent lamps (AX) : 10
Feedback-signal contact : No
Connection type : Push-in clamp
Washing machine switch : No
Width of device (mm) : 70
Height of device (mm) : 68
