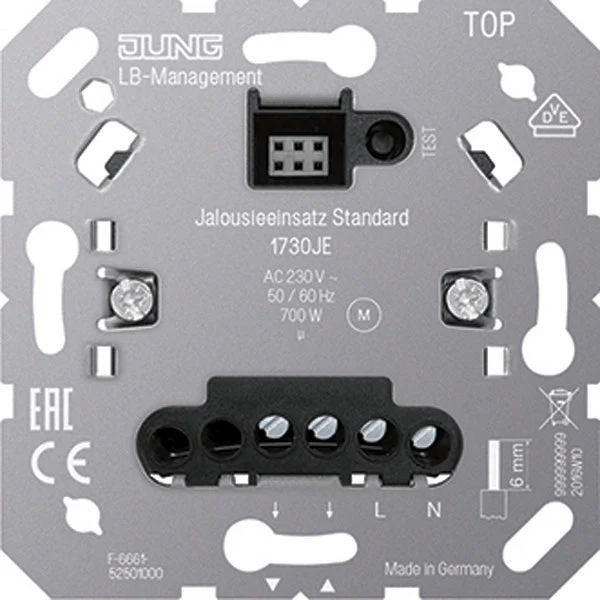

Jung Venetian Blind Switch – 1730JE

This blind base element Standard from Jung’s LB Management is suitable for operating electrically controlled blinds, shutters and awnings. The shutter control has a reversal function of the motor outputs with test button in case of incorrect connection, this eliminates the need to disassemble the basic elements again. It is possible to store a ventilation position. Depending on the control cover you combine the louver control with, you control your blinds manually with mechanical control buttons, via Bluetooth or with a timer.

Specifications

Assembly arrangement : Basic element
Model : 1-pole push button
Method of operation : Rocker
Electrical and mechanical locking : No
Mechanical controllable : No
Electronic controllable : Yes
Mounting method : Flush mounted (plaster)
Halogen free : Yes
Surface protection : Galvanized
Type of fastening : Mounting with claw and screw
Connection type : Screwed terminal
RAL-number (similar) : 7035
Transparent : No
Label space/information surface : No
Suitable for degree of protection (IP) : IP2X
Nominal voltage (V) : 230
Number of buttons : 2
Min. depth of built-in installation box (mm) : 32
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
