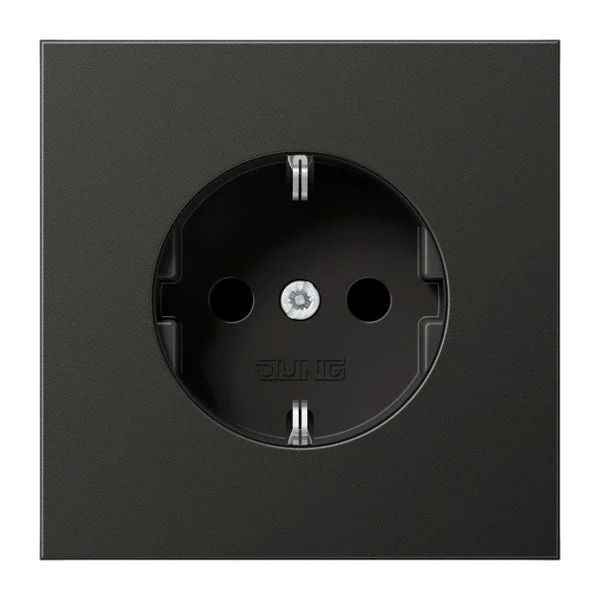

This single socket outlet from Jung’s LS range is equipped with rim earth. This socket is attached with screws and is suitable for flush mounting only. Furthermore, this socket is made of metal and has an anthracite color. The socket should be finished with a cover frame of your choice from a series of the LS range.
Specifications
Model : Protective contact (SCHUKO)
Protective contact : Yes
Protective earth pin round : No
Number of active pins (round) : 2
Number of active pins (flat) : 0
With signal lamp : No
With built-in USB power supply : No
Number of units : 1
Number of socket outlets switchable : 0
Number of phases : 1
Imprint/indication : None
Connection type : Push-in clamp
With hinged lid : No
With enhanced contact protection : No
Label space/information surface : No
Color : Anthracite
Metallic color : No
Transparent : No
Lockable : No
Eject-mechanism : No
Insulated mounting : No
With function lighting : No
With orientation lighting : No
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Special power supply : No special power supply
Mounting method : Flush mounted (plaster)
Type of fastening : Mounting with screw
Material : Metal
Material quality : Aluminum
Halogen free : Yes
Surface protection : Lacquered
Surface finishing : Matt
Anti-bacterial treatment : No
With on/off switch : No
With loop through function : Yes
Rotated central insert : No
Nominal current (A) : 16
Nominal voltage (V) : 250
Frequency (Hz) : 50 Hz to 50 Hz
Suitable for degree of protection (IP) : IP20
Width of device (mm) : 70
Height of device (mm) : 70
Depth of device (mm) : 30
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 38
Compatible with Amazon Alexa : No
IFTTT support available : No
