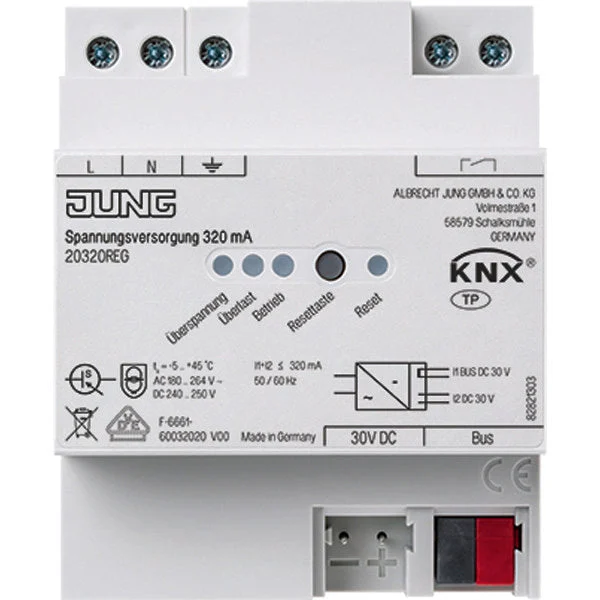

Jung KNX Power Unit 320 MA – 20320REG

This is a Jung power supply unit for bus systems, specifically the KNX bus system, among others. It includes a built-in choke for smoothing frequency, support for one line, and a maximum output current of 320mA. It features an LED indicator and is a 4-module unit width, designed with a DIN-rail adapter (DRA). This power unit provides a secondary voltage of 30V. Please note the unit is referred to as “KNX power supply unit 320 mA”.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With LED indication : Yes
Bus voltage stockable : No
Number of integrated choke coils : 1
Number of lines to feed : 1
Max. output current (mA) : 320
Secondary voltage (V) : 30
