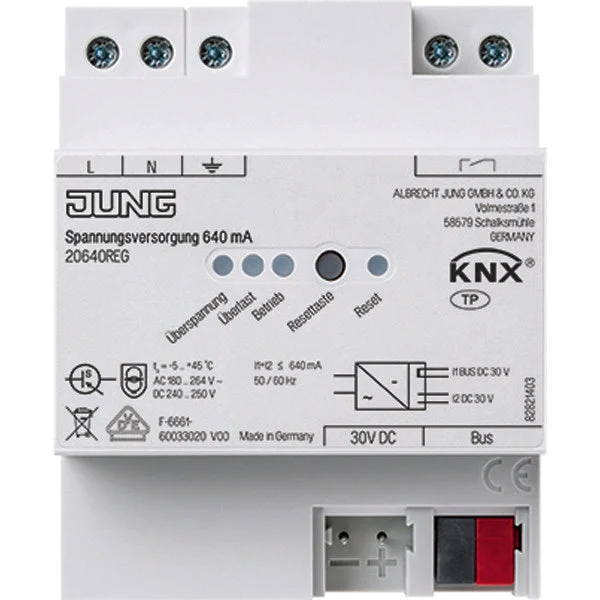

Jung KNX Power Supply Unit 640 MA – 20640REG

This is a Jung power supply unit for a KNX bus system, equipped with a DIN-rail adapter (DRA). Occupying 4 module units in width, it comes with LED indication. The power supply unit features 1 integrated choke and supports 1 maintainable line. The unit produces a maximum output current of 640mA and a secondary voltage of 30V. It is suitable for KNX bus system with a power requirement of 640 mA.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With LED indication : Yes
Bus voltage stockable : No
Number of integrated choke coils : 1
Number of lines to feed : 1
Max. output current (mA) : 640
Secondary voltage (V) : 30
