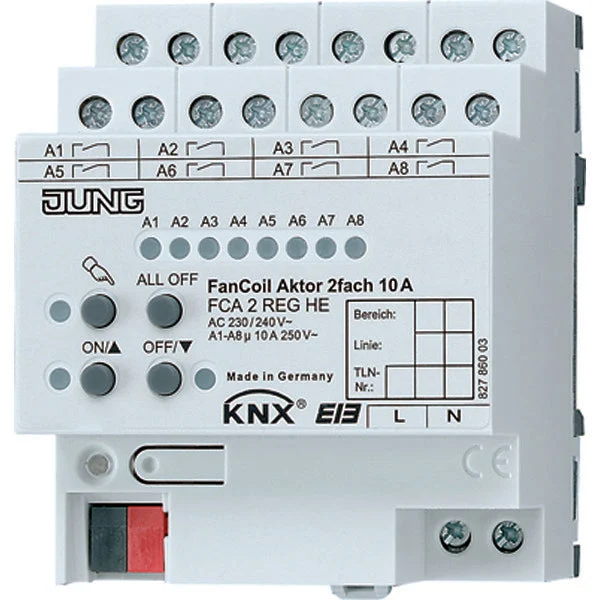

Jung KNX Fan Coil Actor 2V – FCA2REGHE

The Jung EIB-KNX heating actuator bus system operates at a switching voltage of 230 – 240V, with eight outputs. It features a valve protection function and a protection level of IP20. The width of the unit is defined in 4 module units and the package includes a bus connection. The bus system is KNX, facilitated with manual switching. Maximum switching current for resistive load is 10A, with the maximum output current also being 10A.

Specifications

Bus system KNX : Yes
Bus system KNX radio : No
Bus system radio frequent : No
Bus system LON : No
Bus system Powernet : No
Other bus systems : None
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 4
With bus connection : Yes
Correcting variable consistent : Yes
Correcting variable switching : Yes
Valve protection function : Yes
Manual switch : Yes
Max. switching current (resistive load) (A) : 10
Number of outputs : 8
Max. output current (A) : 10
Switching voltage (V) : 230 V to 240 V
