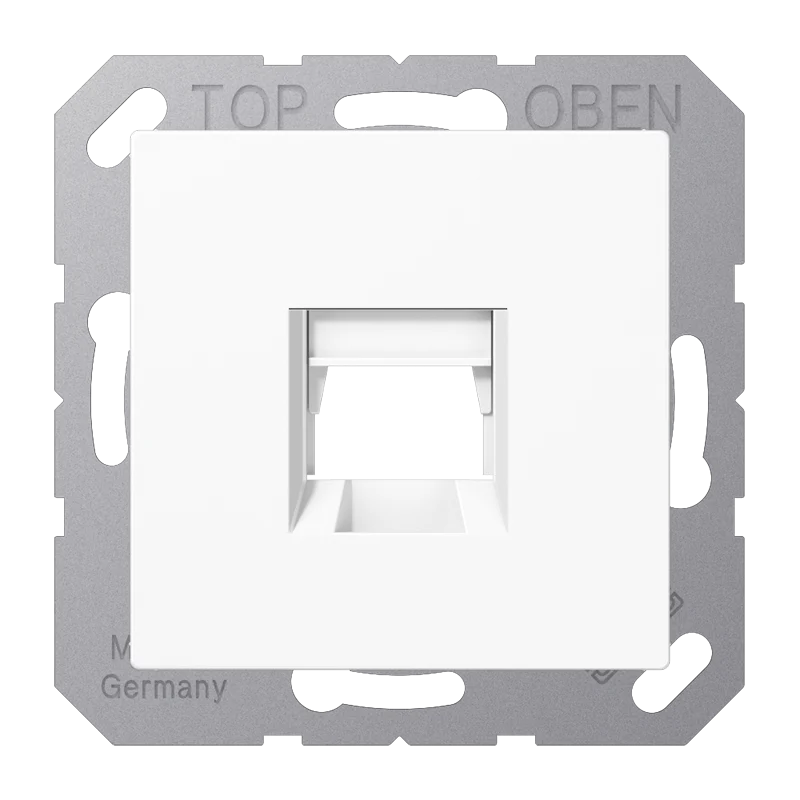

This A/AS range central plate RJ45 from Jung is used to finish a single (AMP or RADIALL) modular jack connection. The central plate features a spring-back slider that seals the entrance dust-tight. Furthermore, the central plate RJ45 is fastened by means of click fastening and is finished in an alpin white color. The central plate RJ45 is suitable for modular jack anan number 6 WE, UMA-CAT6A.
Specifications
Assembly arrangement : Other
Utilization : Modular Jack
Support ring : Yes
With dust cover : Yes
With hinged lid : No
Outlet direction : Straight
Imprintable label : With indication plate
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9016
Transparent : No
Type of fastening : Clamp mounting
With buses/couplings : No
Suitable for number of connectors : 1
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Width of device (mm) : 55
Height of device (mm) : 55
