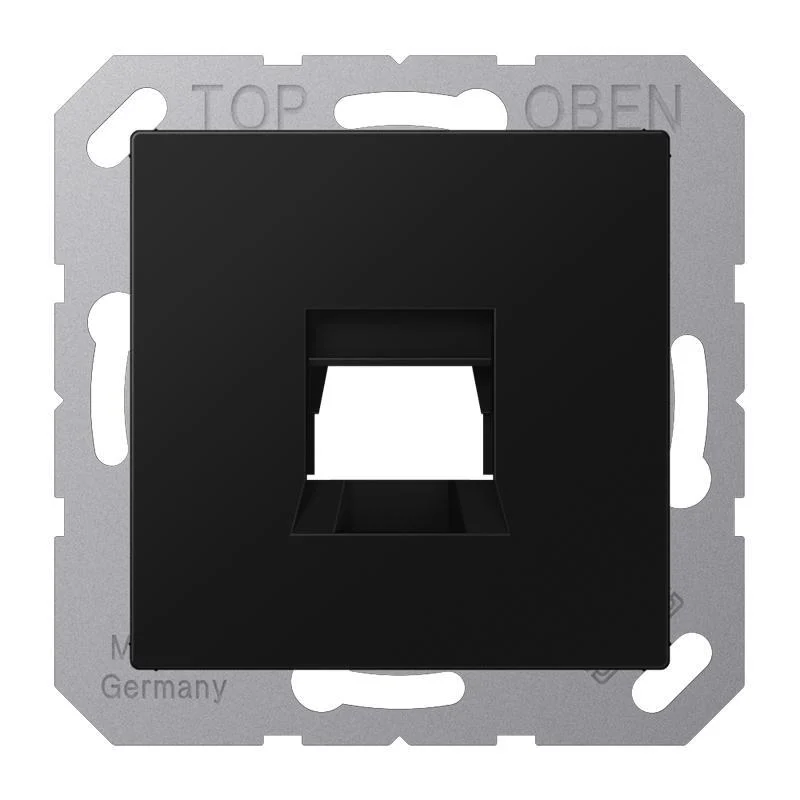

This central plate RJ45 from Jung’s A range is used to finish a single (AMP or RADIALL) modular jack connection. The central plate features a spring-back slider that seals the entrance dust-tight. Furthermore, the central plate RJ45 is attached by click fastening and is graphite black matte in color (similar to RAL9011). The central plate RJ45 is suitable for modular jack anan number 6 WE, UMA-CAT6A.
Specifications
Assembly arrangement : Other
Utilization : Modular Jack
Support ring : Yes
With dust cover : Yes
With hinged lid : No
Outlet direction : Straight
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Lacquered
Surface finishing : Matt
Color : Black
RAL-number (similar) : 9005
Transparent : No
Type of fastening : Clamp mounting
With buses/couplings : No
Suitable for number of connectors : 1
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Width of device (mm) : 55
Height of device (mm) : 55
