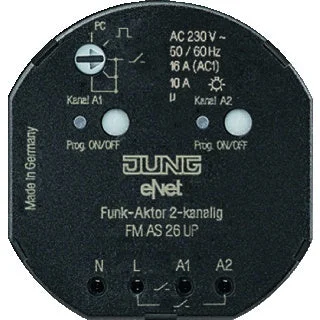

This eNet switch/pulse actuator from Jung is suitable for switching lights and motors. The 2-gang switching actuator is operated with suitable wireless eNet transmitters. Furthermore, this radio switch/pulse actuator must be installed in a flush-mounted box in accordance with DIN 49073 in combination with a suitable cover. The Jung eNet switch/pulse actuator features the following functionalities: Operating mode switch for switching to switch/pulse actuator together for both outputs or parameterization via the eNet server. Independent switching of two electrical loads.
Specifications
Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : eNet
Radio frequent bidirectional : Yes
Mounting method : Flush mounted (plaster)
Width in number of modular spacings : 1
Local operation/hand operation : No
With LED indication : No
Number of digital inputs : 0
Max. switching power (W) : 1380
Suitable for C-load : Yes
Max. number of switching contacts : 2
Max. switching current (A) : 16
Rated operating voltage (V) : 230 V to 230 V
Different phases connectable : No
With bus connection : Yes
Modular expandability : No
