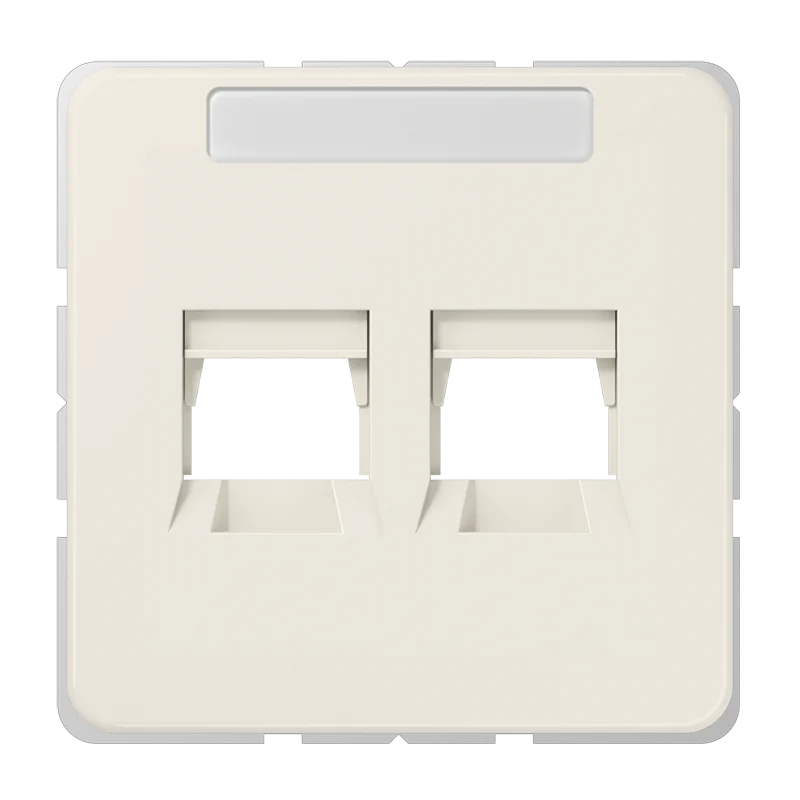

This central plate RJ45 from Jung’s CD range series is used to finish a dual (AMP or RADIALL) modular jack connection. In addition, the cover features a text window. Furthermore, the central plate RJ45 is attached by clamping and is finished in a cream color.
Specifications
Assembly arrangement : Other
Utilization : Modular Jack
Support ring : Yes
With dust cover : Yes
With hinged lid : No
Outlet direction : Straight
Imprintable label : With indication plate
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Surface finishing : Glossy
Color : White
RAL-number (similar) : 1013
Transparent : No
Type of fastening : Clamp mounting
With buses/couplings : No
Suitable for number of connectors : 2
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Width of device (mm) : 67
Height of device (mm) : 67
