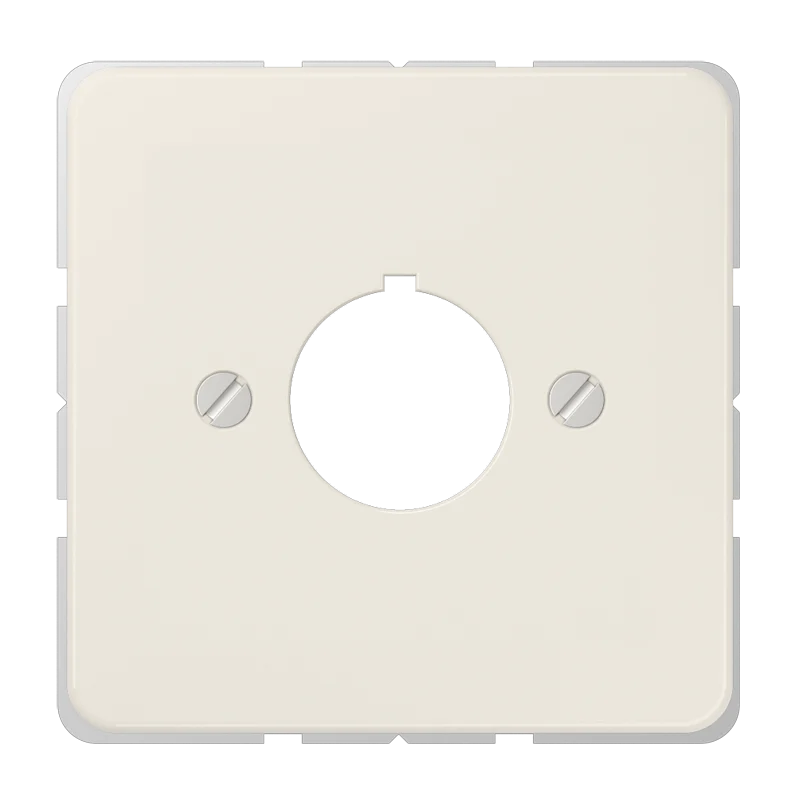

This central plate from Jung’s CD range is a cover that can be used for inserting a device with a diameter of up to 22.5mm. Furthermore, the central plate is finished in a cream color and comes with a sticker sheet with the words: Emergency switch, heating, smoke vent, open dome light, house alarm.
Specifications
Assembly arrangement : Basic element with central cover plate
Utilization : Other
Support ring : Yes
With dust cover : No
With hinged lid : No
Outlet direction : Straight
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 1013
Transparent : No
Type of fastening : Mounting with screw
With buses/couplings : No
Suitable for number of connectors : 1
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Width of device (mm) : 71
Height of device (mm) : 71
