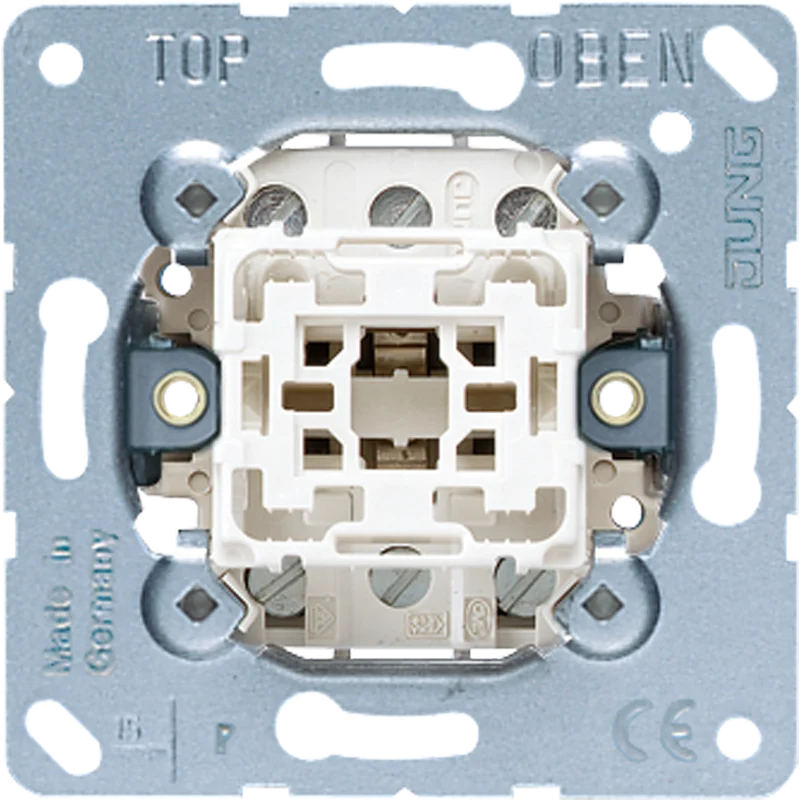

This switch from Jung is suitable as a 3-pole switch. The switch is equipped with screw terminals for conductors up to 4mm². Furthermore, the switch has screw terminals suitable for conductors up to 4mm². The Jung switch can be illuminated in the off position with lamp anan number 98 (400 V) or 98-220 (230 V).
Specifications
Wiring system : 3-pole switch
Method of operation : Rocker/button
Assembly arrangement : Basic element
Push button switch : No
Number of rockers : 1
Mounting method : Flush mounted (plaster)
Type of fastening : Screw mounting
With mounting plate : No
Material quality : Duroplast
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
RAL-number (similar) : 0
Label space/information surface : No
Illumination : Optional
Function lighting : Orientation
Type of lighting : Incandescent lamp
Suitable for degree of protection (IP) : IP20
Impact strength : IK00
Nominal voltage (V) : 400
Rated current (A) : 16
Switching current for fluorescent lamps (AX) : 16
Feedback-signal contact : No
Connection type : Screwed terminal
Heating switch : No
Washing machine switch : No
Width of device (mm) : 71
Height of device (mm) : 71
Built-in depth (mm) : 32
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Min. depth of built-in installation box (mm) : 40
Compatible with Amazon Alexa : No
IFTTT support available : No
