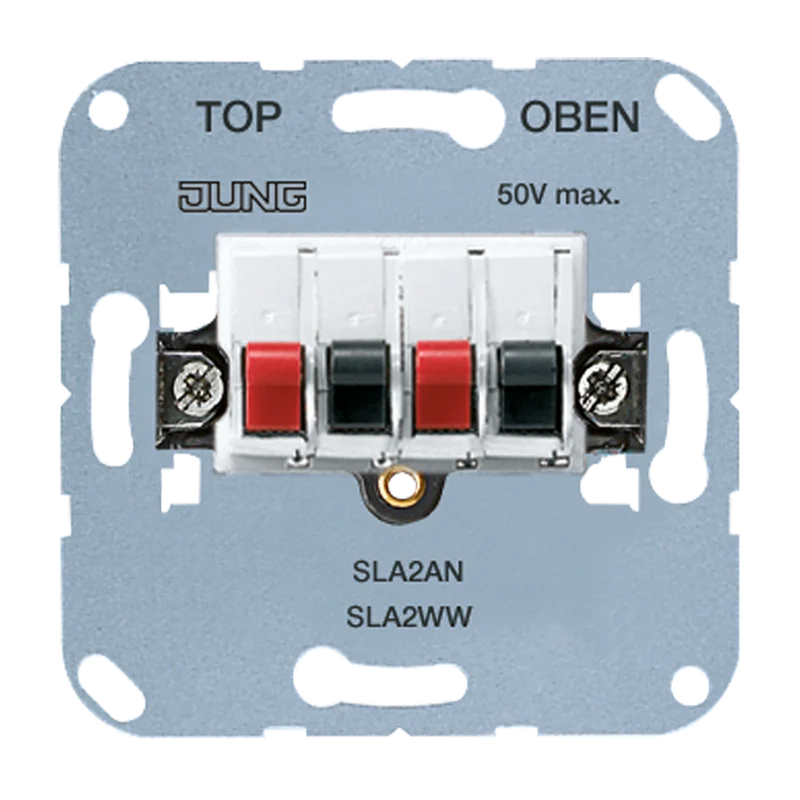

Jung’s stereo speaker junction box has screw contacts on the inside and 2 red and 2 black connection terminals. The speaker socket is also suitable for safety voltage. This Jung speaker socket can be finished with one of the following covers: AS / A range: anan number. A569PLT . CD range: anan number. CD569T . (not metal versions). LS range: anan no. 969T . . 2969T .
Specifications
Assembly arrangement : Basic element
Utilization : Loudspeaker connection
Support ring : Yes
With dust cover : No
With hinged lid : No
Outlet direction : Straight
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Color : White
RAL-number (similar) : 9016
Transparent : No
Type of fastening : Mounting with screw
With buses/couplings : Yes
Suitable for number of connectors : 2
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : Yes
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Min. depth of built-in installation box (mm) : 40
