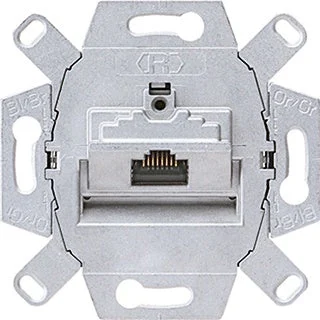

Jung Basic Element Data Socket Twisted Pair – UAE8UPOK6

This data socket from Jung is suitable for transmission rates up to 500 MHz. RJ45 connections for networks Cat. 6A, Class EA (10 Gbit/s / 500 MHz), corresponds to Cat. 6A according to ISO/IEC 11801 Amendment 2 and Cat. 6A according to TIA/EIA-568-B.2-10 2008. The data socket is suitable for PoE+ according to IEEE 802.3at,>= 1000 plug cycles, suitable for RJ 11/12. (screw fastening)For neutral networksProtected LSA connection terminalsFlexible cable entry without kinking from all sidesSuitable for flush-mounted sockets. This Jung data socket is suitable for central plates: AS / A range: anan now.

Specifications

Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : No
Assembly arrangement : Basic element
With buses/couplings : Yes
Suitable for number of connectors : 1
Shielded buses : Yes
Shielded housing : No
Separate earthing connection : No
With label space : No
Outlet direction : Straight
With dust cover : No
With terminal resistor : No
