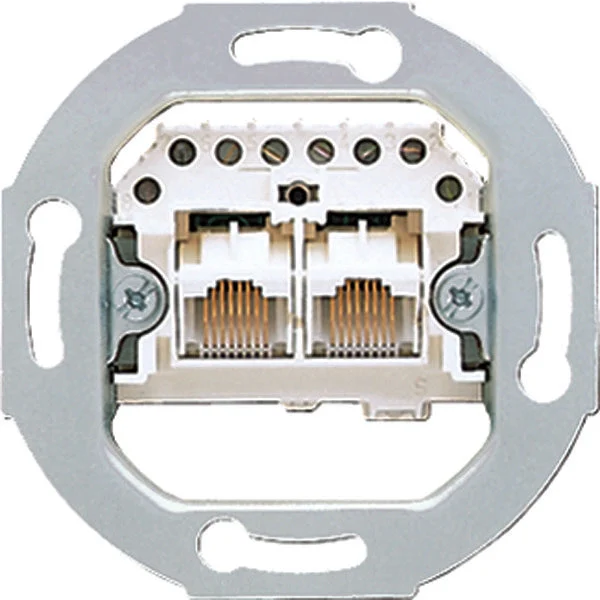

Jung Basic Element Data Socket Twisted Pair – UAE2X8UPO

Jung Basic element UAE data socket twisted pair, category 3, connector type RJ45-8P8C, wall channel mounting, protection type (IP) IP20, connection type screw, suitable for number of connectors 2, mounting horizontal, mounting vertical, flush mounting (plaster).

Specifications

Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : No
Assembly arrangement : Basic element
With buses/couplings : Yes
Suitable for number of connectors : 2
Category : 3
Connection type : Screw
Shielded buses : Yes
Shielded housing : No
Separate earthing connection : No
With label space : No
Separate strain relief : No
Mounting method shielding connection : None
Outlet direction : Straight
With dust cover : No
With terminal resistor : No
Mechanical coding : No
