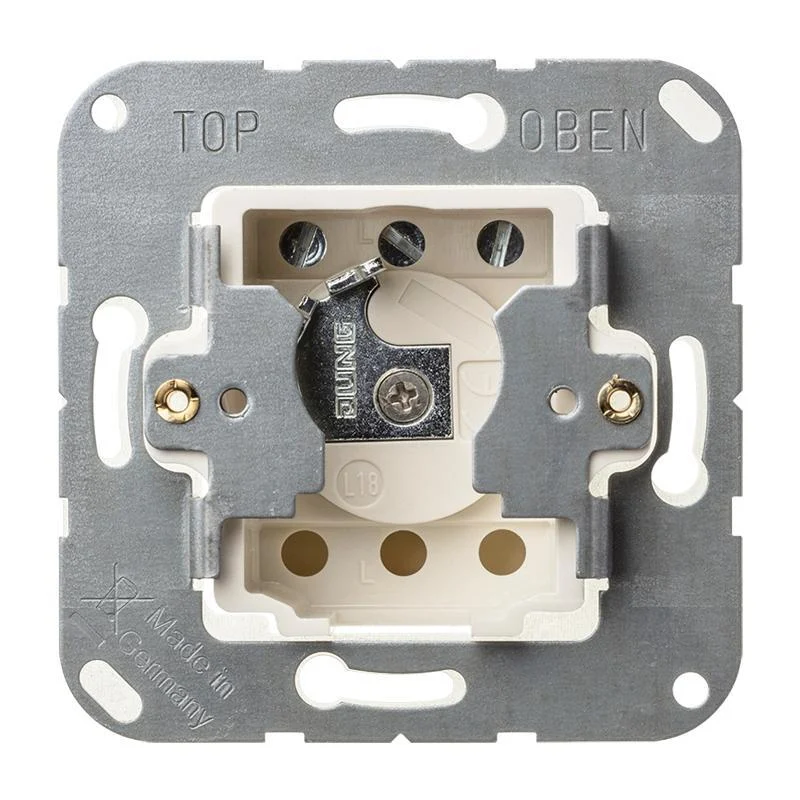

This key switch from Jung is suitable as a 1-pole impulse generator. Key switching is used to secure switching. Combine this louvered rotary encoder with a profile half cylinder of approx. 40 mm total length (DIN 18 252), such as anan number 28 or 28 G1. The Jung key switch can be finished with the following covers: AS / A range: anan number. A 528 PL . CD range: anan number. CD 528 . LS range: anan nummer. LS 928 . . 2928 .
Specifications
Assembly arrangement : Basic element
Model : 1-pole push button
Number of poles : 1
Method of operation : Key
Electrical and mechanical locking : No
Mechanical controllable : Yes
Electronic controllable : No
Mounting method : Flush mounted (plaster)
Halogen free : Yes
Surface protection : Galvanized
Type of fastening : Mounting with screw
Connection type : Screwed terminal
Color : Other
Label space/information surface : No
Suitable for degree of protection (IP) : IP20
Rated current (A) : 10
Nominal voltage (V) : 250
Min. depth of built-in installation box (mm) : 40
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
