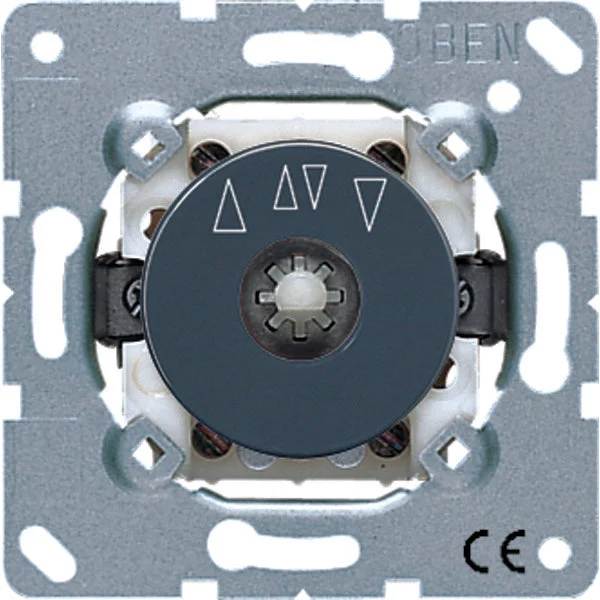

This blind switch from Jung features an indicator disc. Directional arrows are printed on this indicator disc. The blind rotary switch is 2-pole and includes screw terminals for conductors up to 2.5mm². Furthermore, a locking plate is included to use the blind switch as an impulse switch. This Jung Basiselement blind switch can be combined with the following covers: S / A range: anan no. 1541 . CD range: anan number. CD 1541 . SL range: anan number. SL 1541 . LS range: anan nummer. LS 1941 . . 1941 .
Specifications
Assembly arrangement : Basic element
Model : 2-pole switch
Number of poles : 2
Method of operation : Turn button
Electrical and mechanical locking : No
Mechanical controllable : Yes
Electronic controllable : No
Mounting method : Flush mounted (plaster)
Halogen free : Yes
Surface protection : Galvanized
Type of fastening : Mounting with claw and screw
Connection type : Screwed terminal
Color : Anthracite
Transparent : No
Label space/information surface : No
Suitable for degree of protection (IP) : IP2X
Rated current (A) : 10
Nominal voltage (V) : 250
Min. depth of built-in installation box (mm) : 40
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
