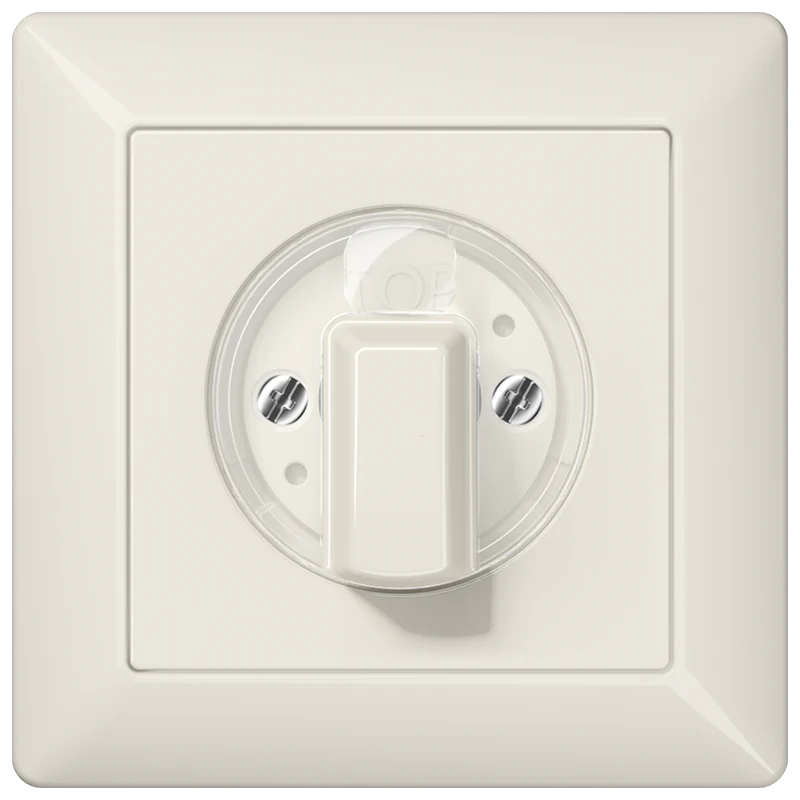

This three-position switch from Jung’s AS range is suitable for controlling motors, for example for mechanical ventilation in residential construction. This complete enclosure must be mounted as a free-standing device and cannot be incorporated into another cover frame. The dial allows one motor to be controlled in three different speeds. This three-position switch has no zero position, so the motor cannot be turned off. Furthermore, the three-position switch with integrated cover frame is fully self-extinguishing, halogen-free and finished in a cream color.
Specifications
Assembly arrangement : Basic element with full cover plate
Method of operation : Turn button
Wiring system : Circuit 2 – 1 -3
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 1013
Transparent : No
Suitable for degree of protection (IP) : IP44
Rated current (A) : 10
Nominal voltage (V) : 230
Type of fastening : Mounting with screw
