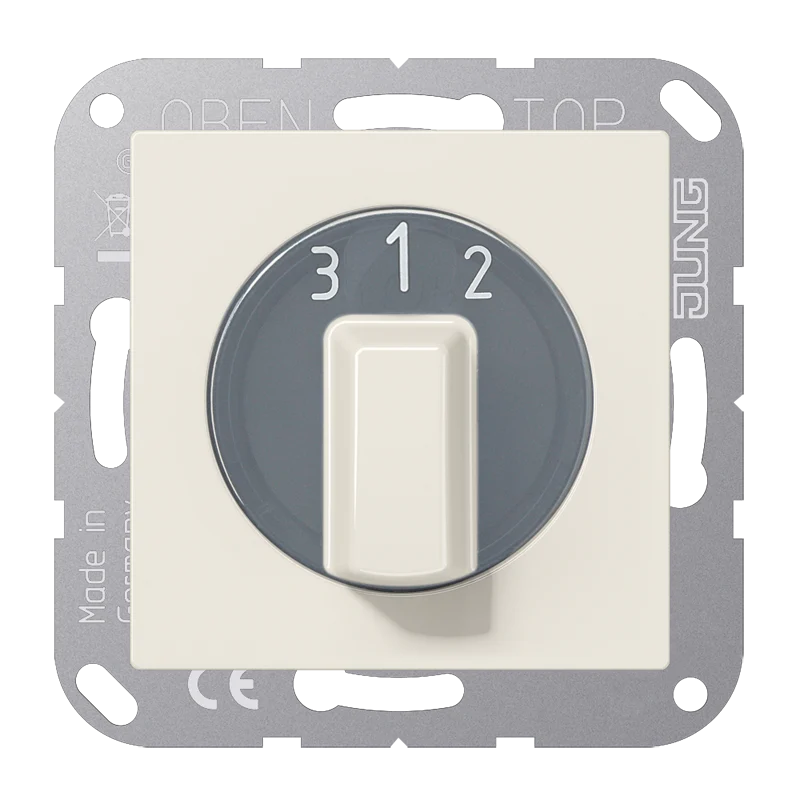

This three-position switch from Jung’s AS range is suitable for controlling motors, for example for mechanical ventilation in residential construction. This basic element with central plate still needs to be combined with a cover frame. The dial allows one motor to be controlled in three different speeds. This three-position switch has no zero position, so the motor cannot be turned off. Furthermore, the three-position switch is fully self-extinguishing, halogen-free and finished in a cream color.
Specifications
Assembly arrangement : Basic element with central cover plate
Method of operation : Turn button
Wiring system : Other
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Surface protection : Other
Surface finishing : Glossy
Color : White
RAL-number (similar) : 1013
Transparent : No
Suitable for degree of protection (IP) : IP44
Rated current (A) : 10
Nominal voltage (V) : 250
Type of fastening : Mounting with screw
