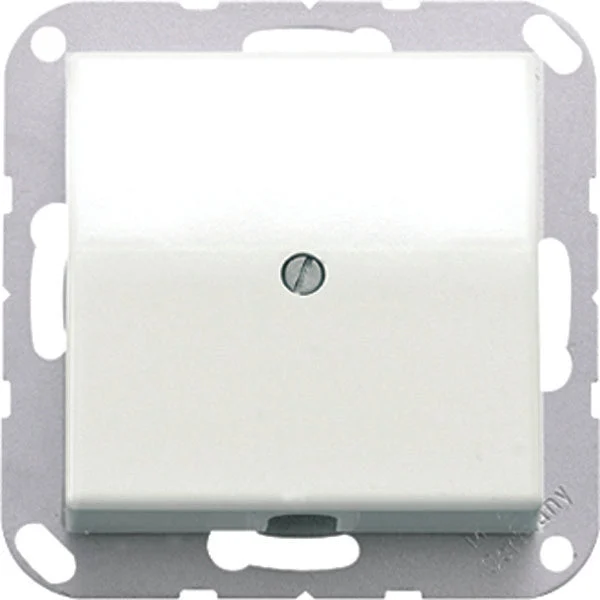

This blind plate from Jung’s AS range features a cable entry with strain relief. The blind plate is suitable for inserting conductors between 3 x 1.5mm² and 5 x 2.5mm² (Ø 7 to 13mm). Furthermore, the blind plate is finished in an alpin white color. This Jung central plate should be finished with a cover frame of your choice from a series of the AS range.
Specifications
Assembly arrangement : Basic element with central cover plate
Utilization : Cable outlet
Support ring : Yes
With dust cover : No
With hinged lid : No
Outlet direction : Below
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9016
Transparent : No
Type of fastening : Mounting with screw
With buses/couplings : No
Suitable for number of connectors : 0
With strain relief : Yes
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Width of device (mm) : 55
Height of device (mm) : 55
