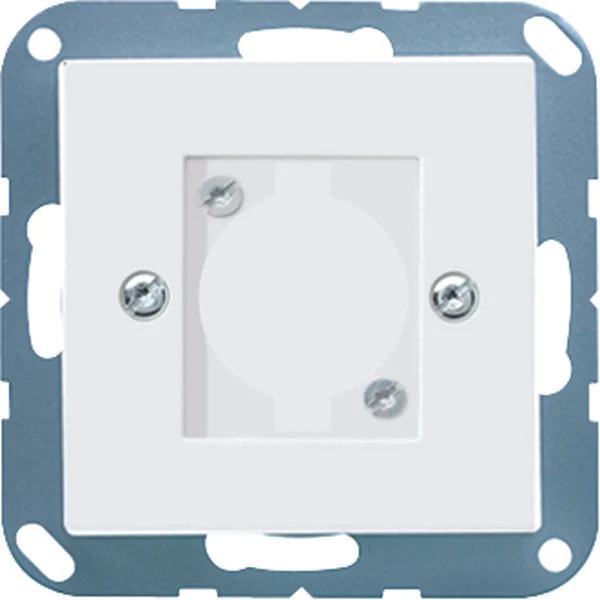

This A/AS range central plate XLR from Jung is suitable for finishing a loudspeaker connection. The central plate has an opening of 27.5 x 32.5mm (WxH). Furthermore, the center plate XLR is finished in an alpin white color. The center plate XLR is suitable for combination with: Speaker connection anan number. PB 4: Chassis part anan number. CXLR-S, CXLR-D: XLR chassis from Neutrik D / DL / DLX Series.
Specifications
Assembly arrangement : Other
Utilization : Loudspeaker connection
Support ring : Yes
With dust cover : No
With hinged lid : No
Outlet direction : Straight
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Other
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9016
Transparent : No
Type of fastening : Mounting with screw
With buses/couplings : No
Suitable for number of connectors : 1
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Width of device (mm) : 55
Height of device (mm) : 55
