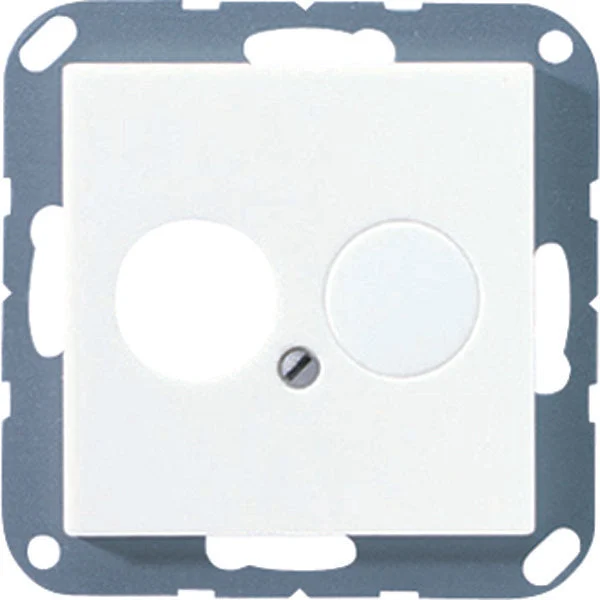

This A/S range central plate from Jung is suitable for covering 2 audio junction boxes up to Ø18.5mm or with flange mounting 22.5mm hole spacing. The central plate BNC has a support ring and the second opening is breakable. Furthermore, the central plate BNC has an all-white color.
Specifications
Assembly arrangement : Other
Utilization : Loudspeaker connection
Support ring : Yes
With dust cover : No
With hinged lid : No
Outlet direction : Straight
Imprintable label : Without indication field
With imprint : No
Mounting method : Flush mounted (plaster)
Material : Plastic
Material quality : Duroplast
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9016
Transparent : No
Type of fastening : Mounting with screw
With buses/couplings : No
Suitable for number of connectors : 1
With strain relief : No
Shielded buses : No
Shielded housing : No
Luster terminal : No
With lighting : No
Suitable for degree of protection (IP) : IP2X
Impact strength : IK00
Width of device (mm) : 55
Height of device (mm) : 55
