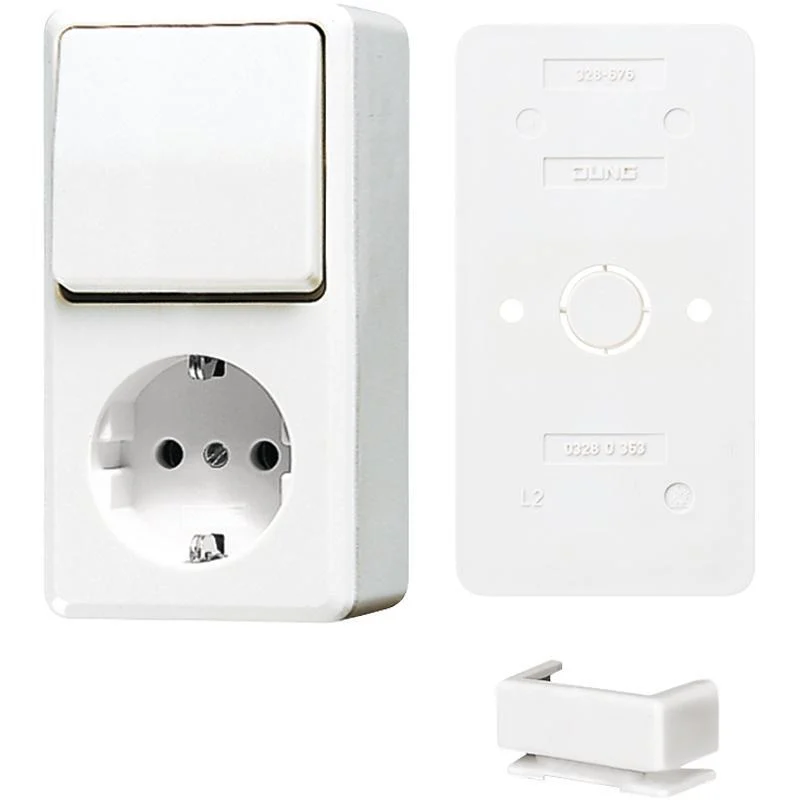

The Jung AP600 is a combination switch/socket made from durable, halogen-free, white duroplast plastic. It is designed for wall-mounted, vertical installation. This device features a single plug socket with protective earth (type F) and a toggle/press switch that can function as both a single pole and changeover switch. This combination set, part of Jung’s AP600 range, also includes a base plate and a K25 cable entry piece. It operates at a nominal voltage of 250V and has a protection class of IP20. The color of the set is alpine white and is flame retardant.
The AP600 series from Jung is known for its great functionality and robust material. AP600 is a thoughtful surface-mounted system made of plastic. Switches and sockets from this series are used in both new construction and renovation on surfaces such as masonry, concrete, and wood. Thanks to the versatility of Jung AP600, all your requirements can be met. Jung AP600 is available in variants that differ in function and color. The colors in which AP600 can be delivered are cream and alpine white. To increase your ordering convenience and prevent mistakes when ordering, Jung now also offers complete sets of the most common AP600 items. This way, you can order a set with a base plate, the surface-mounted element, and the K25 feed piece with one order number.
Specifications
Type of switch : Two-way switch
Type of socket outlet : Protective contact (SCHUKO)
Number of socket outlets : 1
Method of operation : Rocker/button
Mounting direction : Vertical
Type of fastening : Mounting with claw and screw
With lighting : No
Mounting method : Surface mounted (plaster)
Material : Plastic
Material quality : Other
Halogen free : Yes
Surface protection : Other
Surface finishing : Glossy
Color : White
RAL-number (similar) : 9016
Transparent : No
Suitable for degree of protection (IP) : IP20
Nominal voltage (V) : 250
Nominal current socket outlet (A) : 16
Rated current (A) : 16
Over voltage protection : No
Fault current protection : No
With miniature fuse : No
Width of device (mm) : 61
Height of device (mm) : 116
Depth of device (mm) : 47
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
