About this item
- Operate at 2 directions, with the 30 degrees declination of operation handle
- Momentary type operation with 1 normally open contact per direction
- Rated Voltage: AC 380V; Rated Current: 10A; Max. Voltage: 600V
- Simply drill an 30mm (1-17/94″) hole and secure it with the screw ring
- Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
Description:

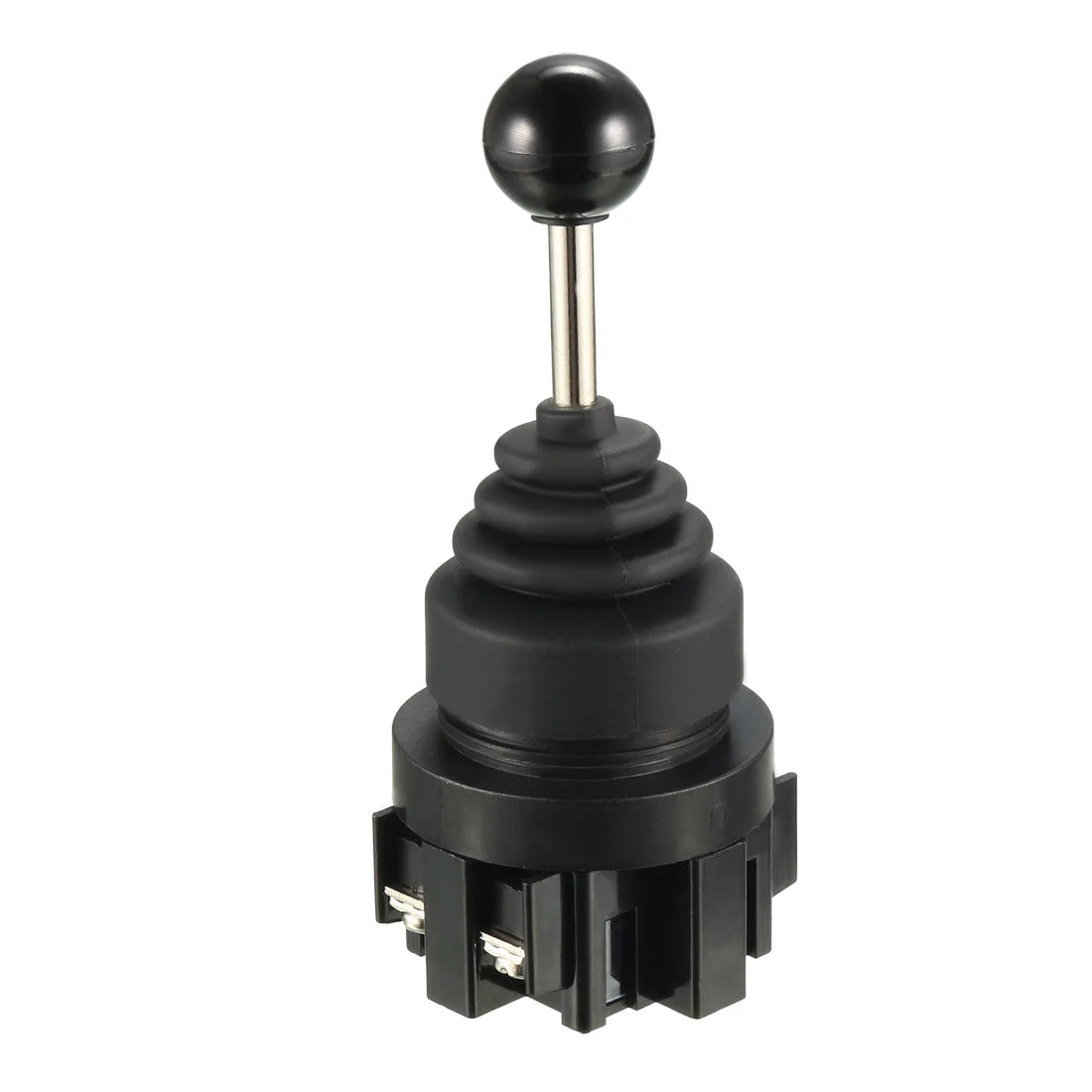

-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.
– controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.
-They are ideal for raising, lowering and triggering movements to the right and left.
-This 30mm selector switch is modularly designed to make assembly.
-Rubber bushing is oil-resistant and dust-preventive.
-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology.
Specification:
Rated Voltage: AC 380V
Rated Current: 10A
Max. Voltage: 600V
Action Type: Momentary
Positions: 2
Contacts Type: 1 NO Contact Per Direction
Terminals Type: Screw Clamps Terminals
Panel Mounting Diameter: 30mm / 1-17/94″
Overall Size: 123 x 51 x 51mm / 4.84″ x 2″ x 2″ (L*W*H)
Joystick Length: 90mm / 3.54″
