About this item
- Operate at 2 directions, with the 20 degrees declination of operation handle
- Latching type operation with 1 normally open contact per direction
- Rated Voltage: 150V / 250V / 600V; Rated Current: 15A / 10A / 4A
- Simply drill an 22mm (7/8″) hole and secure it with the screw ring
- Widely used in automation and security, install the system and control, power monitoring, critical power and cooling service, etc
Description:
-Joystick switches or joysticks are manually actuated control devices for installation in control and front panels as well as in portable control equipment.
– controllers are used wherever motion sequences analogous to the actuation direction are controlled by hand.
-They are ideal for raising, lowering and triggering movements to the right and left.
-This 22mm selector switch is modularly designed to make assembly.
-Rubber bushing is oil-resistant and dust-preventive.
-Widely used in the steel and construction industry, in machine tools, for transport and conveyor systems, in the system and mechanical engineering sectors and for warehousing and studio technology.
Specification:

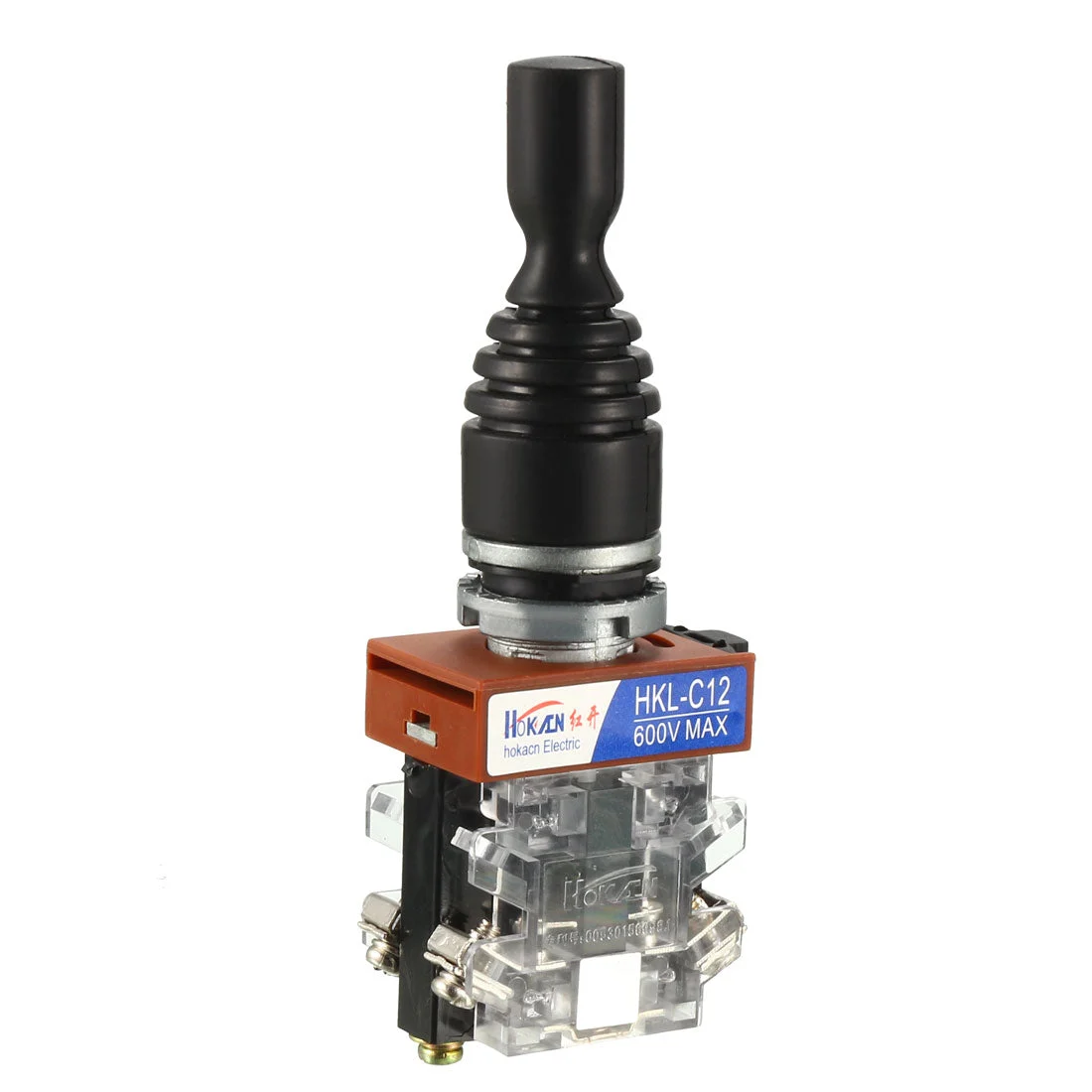

Model: HKL-C12
Rated Voltage: 150V / 250V / 600V
Rated Current: 15A / 10A / 4A
Action Type: Latching
Positions: 2
Contacts Type: 1 NO Contact Per Direction
Terminals Type: Screw Clamps Terminals
Panel Mounting Diameter: 22mm / 7/8″
Overall Size: 135 x 49 x 30mm / 5.31″ x 1.93″ x 1.18″ (L*W*H)
Joystick Length: 70mm / 2.76″
