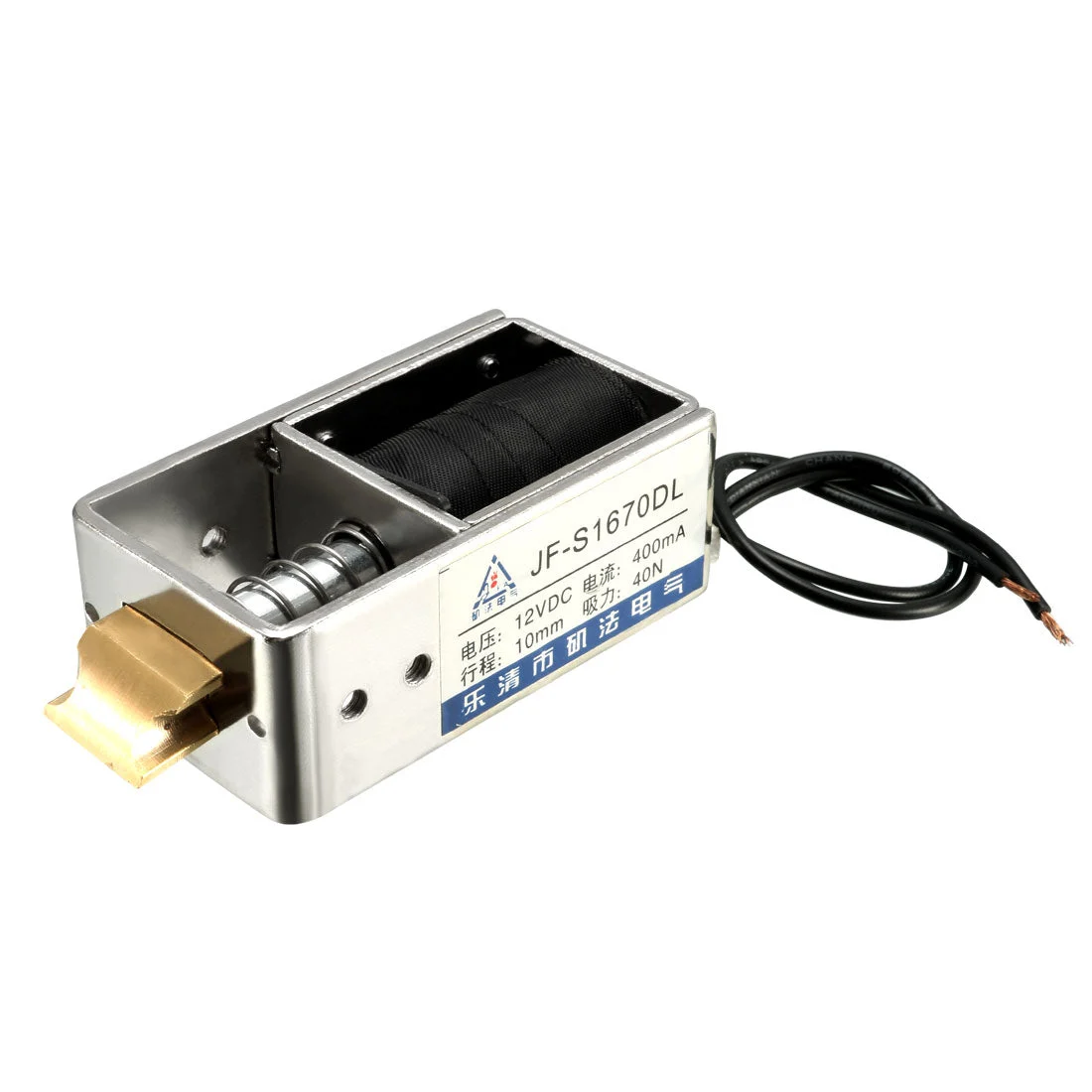

JF-S1670DL DC 12V 400mA 40N 10mm Pull Type Open Frame Linear Motion Solenoid Electromagnet

About this item

• Force: 40N; Travel: 10mm
• Cable Length: 170mm / 6.69″; Rated Voltage: DC 12V;Current: 400mA
• Size: 70 x 26 x 39mm / 2.76″ x 1.02″ x 1.54″ (L*W*H)
• Push Bar Dia: 9.8mm / 0.39″;Total Length: 85mm / 3.35″; Mounting Hole Dia.: 3.2mm / 0.13″
• Package Content: 1 x DC Solenoid Electromagnet

Description:

Pull Type, linear motion, plunger spring return, DC solenoid electromagnet.

Support DC 12V voltage, high power, pull type, linear motion, is easy to install.

DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Note:

Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.

Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using electricity, so as not to damaged the electromagnet.
