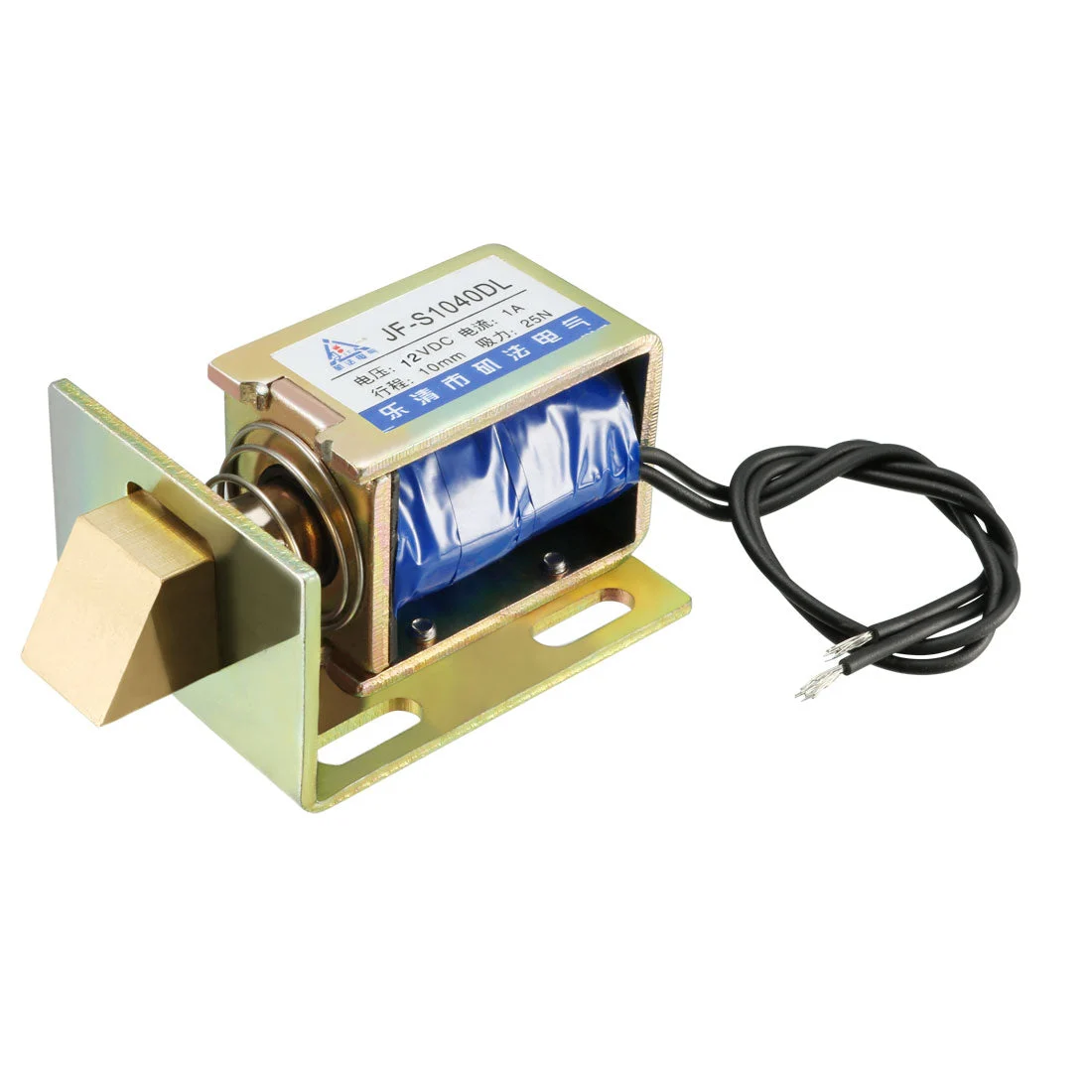

JF-S1040DL DC 12V 1A 12W 25N 10mm Pull Type Linear Motion Solenoid Electromagnet

About this item

• 【FEATURE】- DC 12V 1A 12W 25N Force 10mm Stroke Pull Type Eelectric Door Lock Solenoid
• 【GOOD DESIGN】- Pull Type, open frame Type and mount board,linear motion, high power. DC solenoid electromagnet
• 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
• 【NOTED】- As an actuating element of anmation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 10 seconds.
• 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.

Description:

Pull Type, linear motion, plunger spring return, DC solenoid electromagnet.

Support DC 12V voltage, high power, pull type, linear motion, is easy to install.

DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

specification:

Type: Pull Type
Rated Voltage: DC 12V;
Force: 25N;
Travel: 10mm;
Current: 1A;
Power: 12W
Total Length: 7cm/2.76″;
Push Bar Dia: 10mm/0.39″
Cable Length: 170mm/6.69″
Size: 53 x 42 x 31mm/2.09″ x 1.65″ x 1.22″(L*W*H) ;
Package Content:
1 x DC Solenoid Electromagnet

Note:

Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.

Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using eelectricity, so as not to mar the electromagnet.
