About this item
- [MATERIAL] – Made of iron, nickel plated surface treatment, wear-resisting and durable to use.
- [HOOK SIZE] – 1.8mm (0.07″) thick, 37mm (1.46″) long. High strength and durability by the stamping technology .
- [DESIGN] – Double spring loaded design with excellent tension, make it hold firmly while locking.
- [APPLICATION] – Can be used on cabinet,ordinary box, instrument cases and so on.
- [PACKAGE CONTENT] – 1 x Spring Toggle Latch (mounting screws are not included).
- iron nickel plating material, durable to use.
- Straight loop catches toggle latches, with mounting holes.
- High strength catch and strike. Economical and compact size.
- Pull up ability, no secondary lock.
- Spring loaded with excellent tension, easy to install.
Specification:
Material: Iron
Finish: Nickel Plating
Total Size (combination): 90 x 47 x 22mm / 3.54 x 1.85 x 0.87inch (L*W*H);
Main Body Size: 73 x 47 x 22mm / 2.87 x 1.85 x 0.87inch (L*W*H);
Arm Length: 62mm / 2.44inch
Hook Size: 37 x 26 x 13mm / 1.46 x 1.02 x 0.51inch (L*W*H);
Hook Thickness: 1.8mm / 0.07inch
Hook Mount Hole Diameter: 5.2mm / 0.2inch
Body Mount Hole Diameter: 5mm / 0.2inch
Package Content:

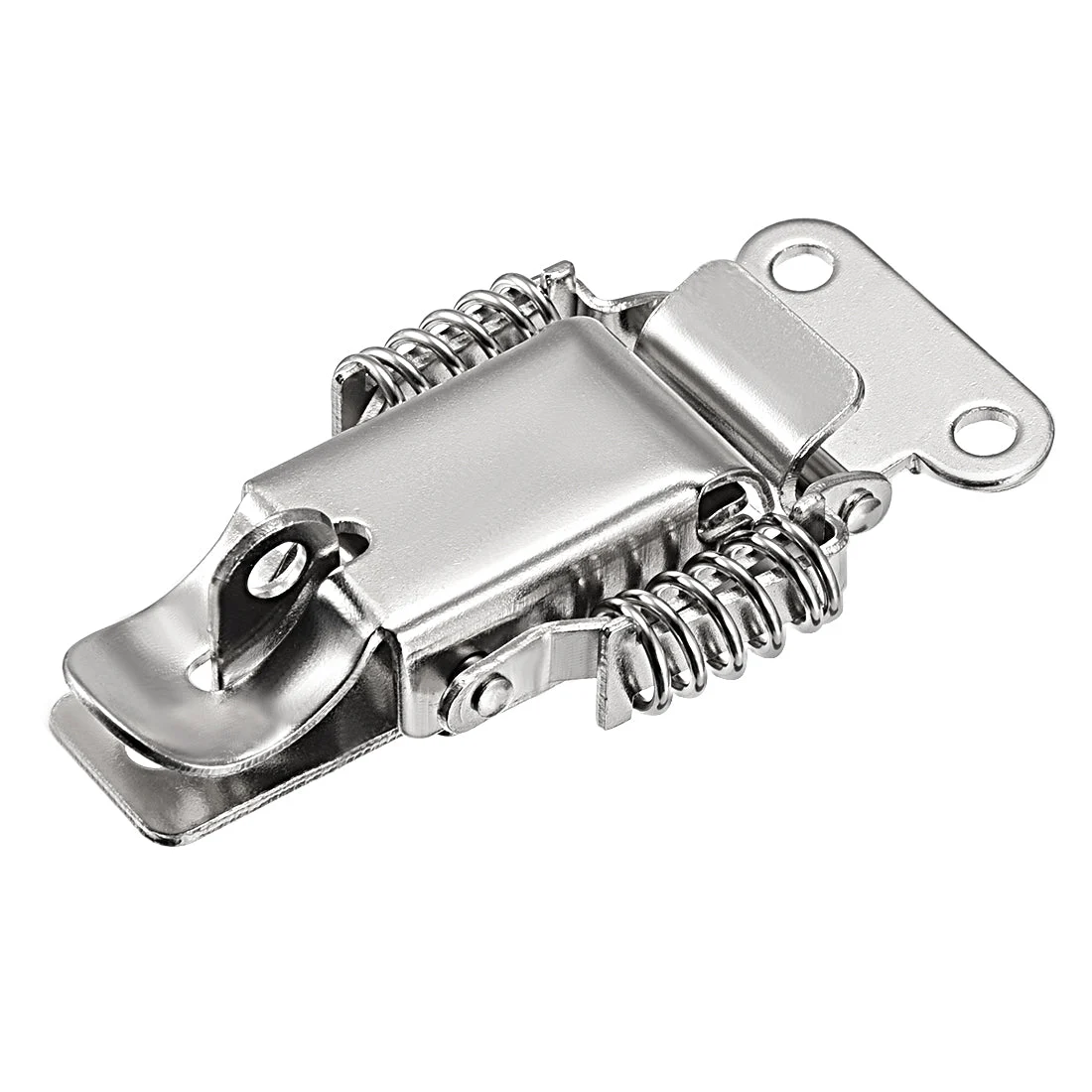

1 x Spring Toggle Latch
Notice for Choosing the Stainless Steel Type?
The stainless steel is not entirely rustless. It is just rust-proof in the proper condition.
* For the indoor decoration or furniture, stainless steel 201 or 304 (SUS201, SUS304) can be used. But Type 201 should only be kept in the dry condition.
* For the not-so-good outdoor condition, in the extremely humid environment, or somewhere with salty vapor, such as by sea or swimming pool, Type 316 or 316L should apply.
* To bear the big load, the carbon steel is a good choice. Its finish can be Zinc plating or paint coating, varying in the environment conditions.
