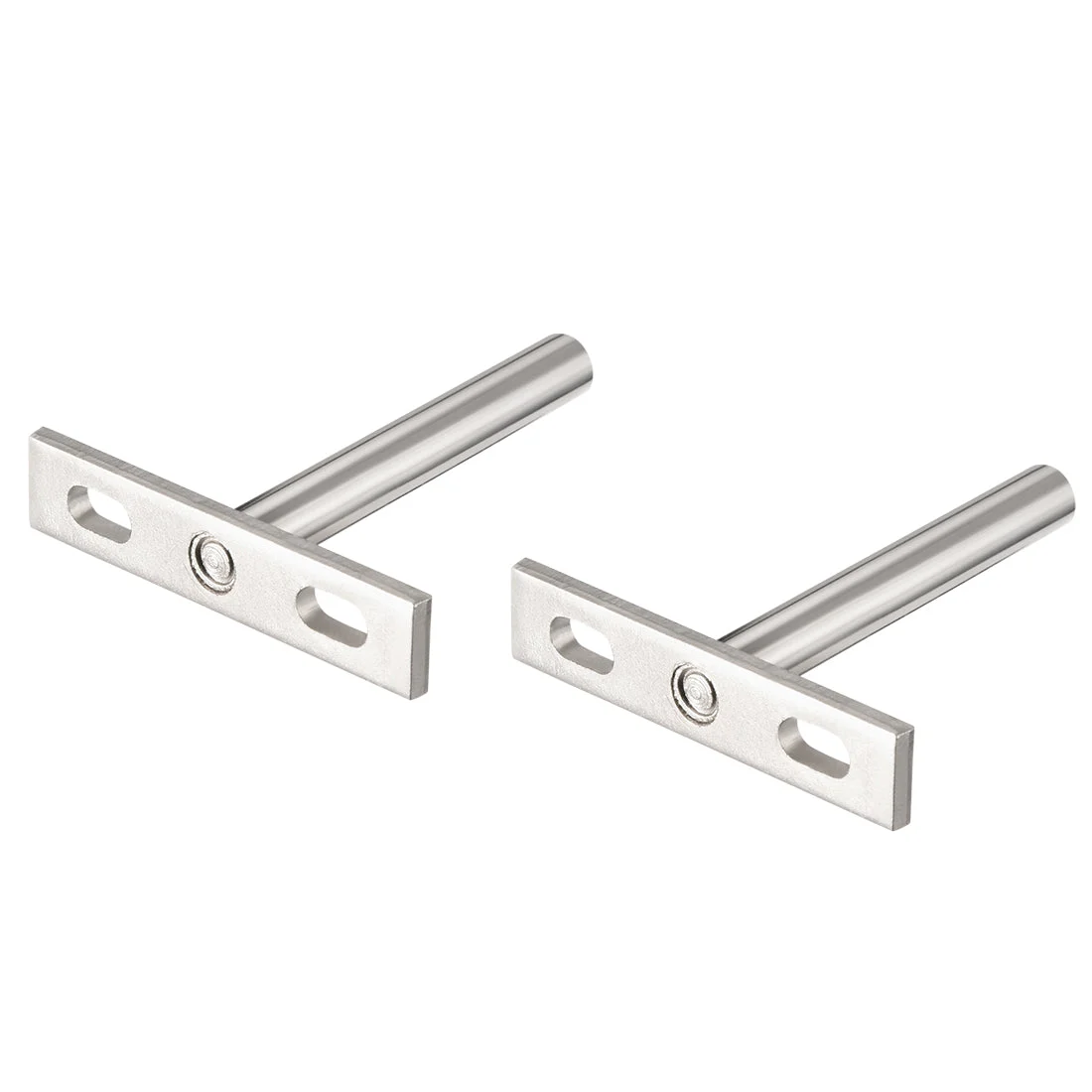

Invisible Floating Shelf Brackets, 3″ (77mm), Hidden Blind Supports for Concealed Shelves, Pack of 2

About this item

• [SIZE] – 2.76″(70mm) wide, 3.03″(77mm) long, 0.39″(10mm) shaft diameter.
• [MATERIAL] – Made of iron, electroplating finish, anti-corrosion and wear resistance.
• [EASY to INSTALL] – With 2 mounting holes, 0.43″(11mm) x 0.24″ (6mm) hole size. Bearing capacity(Max): 10kg/22lb. When the load is more than 10kg, it is recommended to install more than 2 supports to increase the bearing capacity.
• [APPLICATIONS] – This braces can be applied in many different places, widely used in home and factory areas.
• [PACKAGE CONTENT] – 2 x Concealed Bracket (Mounting screws are not included).

INSTALLATION GUIDE

Tools:

1.Every bracket will need screws x2, anchors x2, washer x2. (All are not included)

2.You need to have Level, Drill, Electric Screwdriver, Hammer. (You may need drill press if the shelf is DIY)

STEP:

1.Drill holes on wall – You should use level to mark cross on the wall to make sure you drill the holes in the right place.

2.Install the bracket – You can use washers to help the bracket install tightly. Electric screwdriver is highly recommended.

3.Adjustment – Slightly adjust the rod and height of bracket .

4.Insert the shelf – Just simply put it in, what is more important is to prepare slot for the bracket. Not only for the rods, but also for hole bracket.

Note:When the load is more than 10kg, it is recommended to install more than 2 supports to increase the bearing capacity.

Specifications:

Material: Iron

Shaft Diameter: 10mm / 0.39″

Size(Approx.): 77 x 70 x 14mm / 3.03″ x 2.76″ x 0.55″(L*W*H)

Mounting Hole Size: 11 x 6mm / 0.43″ x 0.24″ (L*W).

Mounting Hole Distance: 42mm / 1.65″

Package Content:

2 Pcs x Concealed Bracket
