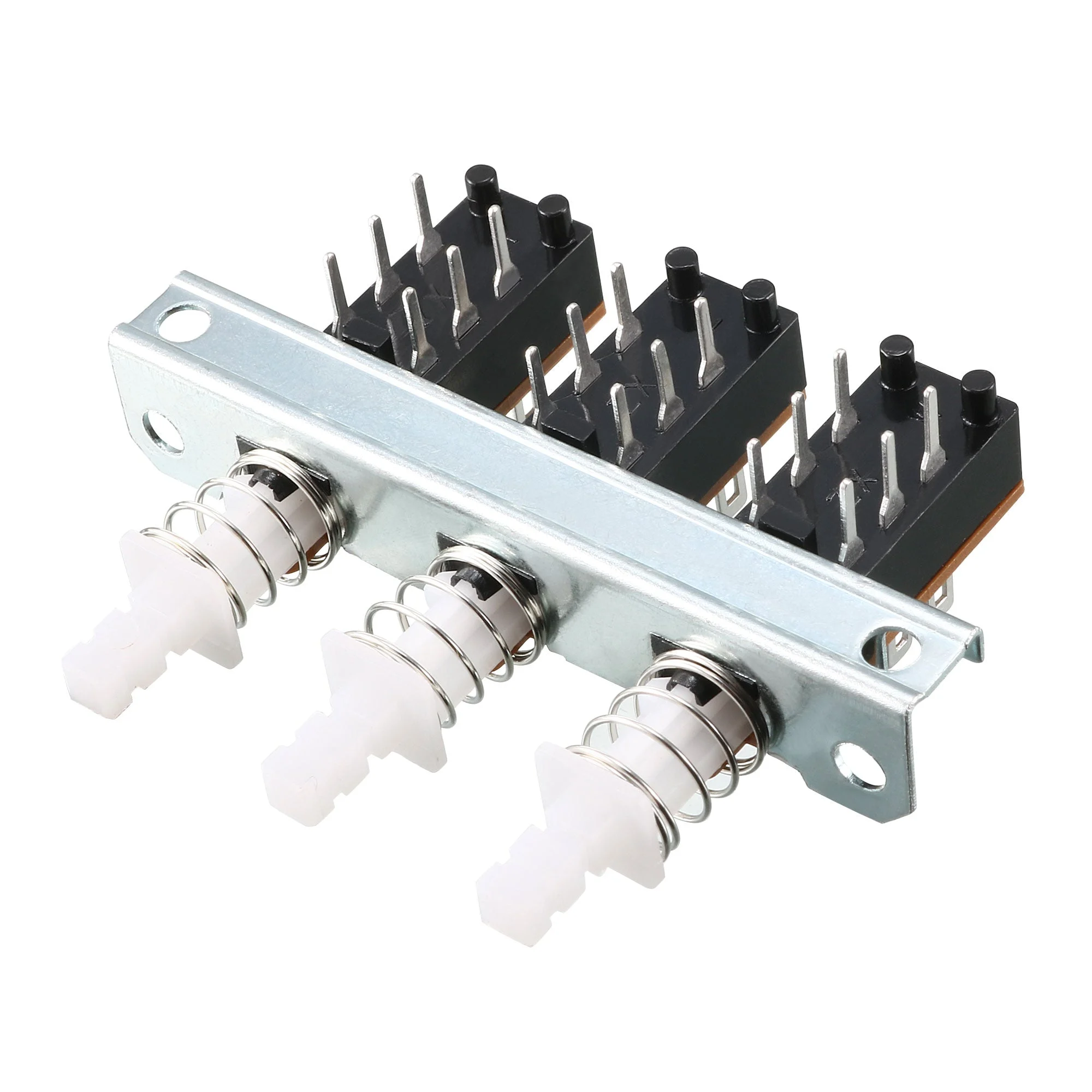

Interlock Push Button Switch Piano Type DPDT 6 Pin 3 Row

About this item

• [Standard] – DPDT 6 Pins 4mm Pitch 3 Position
• [Interlock Switch] – The switch operates one at a time (when one actuator is pressed and the other is released)
• [Features] – Mechanism design offers acute operation and long service life
• [Applications] – Ideal for mounting on PCB motherboard of many electric appliances
• [Package Content] – 1 x Push Button Switch

Specifications:

Material: Plastic, Metal

Switch Operation: Interlock

Contact Configuration: DPDT

Terminal Type: Straight Through Hole

Pin Quantity: 6

Each Pin Pitch: 4mm

Position Quantity: 3

End Width: 9mm / 0.35-inch

Mounting Pillar Distance: 5mm / 0.20-inch

Mounting Hole Distance: 49.5mm / 1.95-inch

Each Cap Part Distance: 15mm / 0.59-inch

Cap Mounting Part: 8 x 3.3mm / 0.31-inch x 0.13-inch(L*W)

Overall Size: 42 x 56 x 18mm / 1.65-inch x 2.20-inch x 0.71-inch(L*W*H)

Package Contents:

1 x Push Button Switch

Description:

Interlock contact, 6 pins, DIP through hole mounting.

Used in the fields of electronic products, household appliances and more.

High precision mechanism design offers acute operation and long service life.
