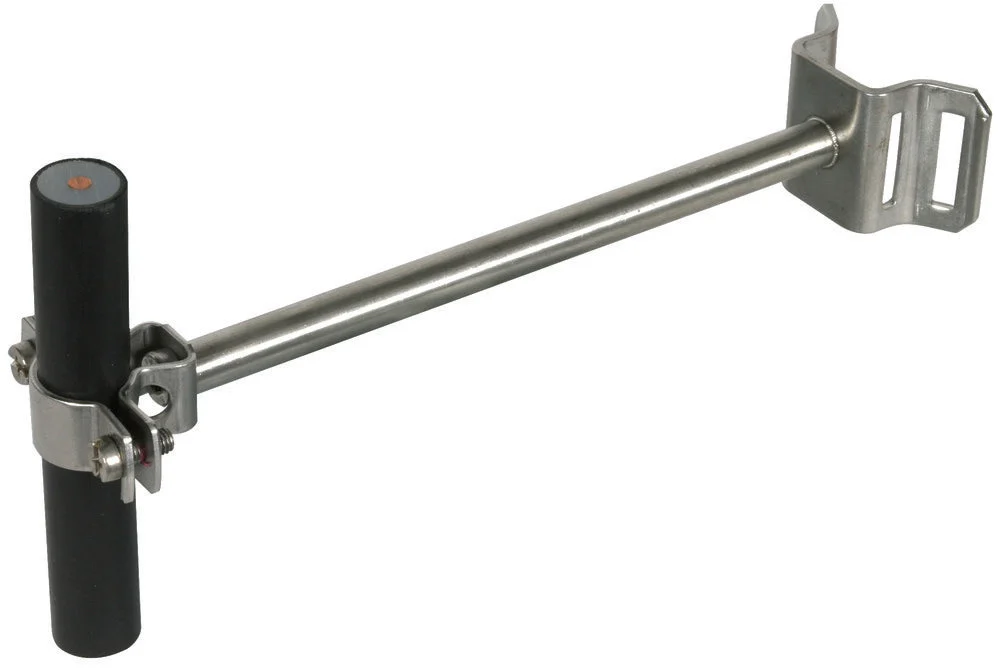

The Dehn HVI conductor holder is used for lightning protection, designed to secure conductors with a screw clamp. The holder has a height of 16mm and fits a pipe clamping range of 50 – 300mm. Made for use in explosive areas, it’s suitable for round conductors with a diameter of 20mm. The bottom and carrier are constructed of RVS 304 (V2A) stainless steel for durability. The design includes a 200mm spacer sleeve for attachment to metal construction parts, such as facades. Its specialized design prevents electric sparks from reaching neighboring metal parts during lightning strikes.
Specifications
Mounting type conductor : With screw clamp
Suitable for diameter round conductor (mm) : 20 mm to 20 mm
Material of holder : Stainless steel V2A
Mounting type holder : Other
Material of carrier : Stainless steel V2A
Material of saddle clamp : Stainless steel V2A
Material base part : Stainless steel V2A
Pipe chucking range (mm) : 50 mm to 300 mm
Wall distance (mm) : 200 mm to 200 mm
Assembly height conductor holder (mm) : 16
Suitable for EX-applications : Yes
