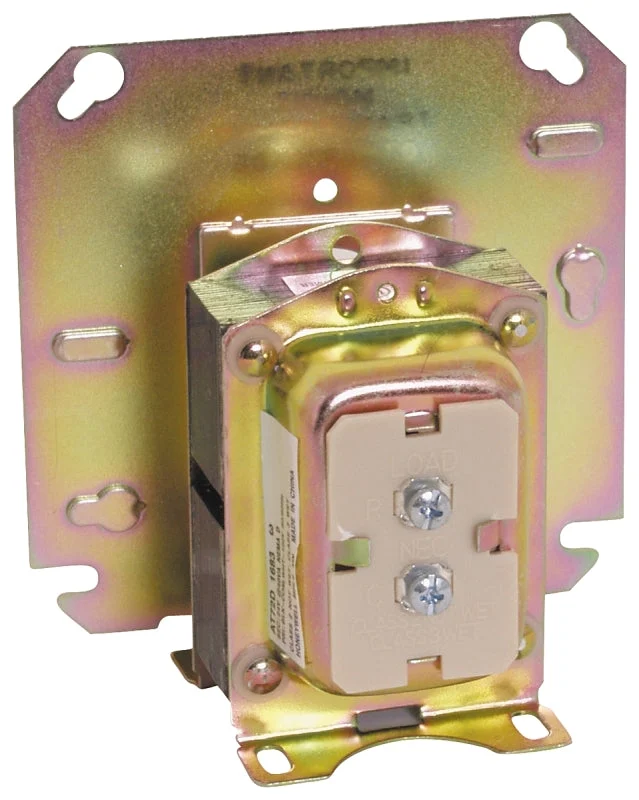

24 V control circuit step-down transformer designed to power any 24 V control system, including thermostats, gas valves and/or relays. Voltage (50/60 Hz) 120. Connections 2 screw terminals, can be foot-mounted, plate mounted on 4 in x 4 in, 4 in octagon or 2 in x 4 in electrical boxes (transformer all above plate or 3/4 above plate) or clamp mounted via a junction box knockout.
Unit: EA
UPC: 085267990103
Model Number: AT72D1683
Features
- Override protection
- Energy limiting and meets NEMA standard DC20-1992
- Transformers are marked NEMA type D enclosure
Additional Information
- Dimensions: 3-1/16 in L x 2-7/32 in W x 3-7/32 in H
- Mounting Type: Clamp
- Nema Rating: D
- Operating Temperature: -29 to 41 deg C
- Primary Voltage: 120 V
- Secondary Voltage: 26.5 V
- Termination Type: Screw
- VA Rating: 40 VA
