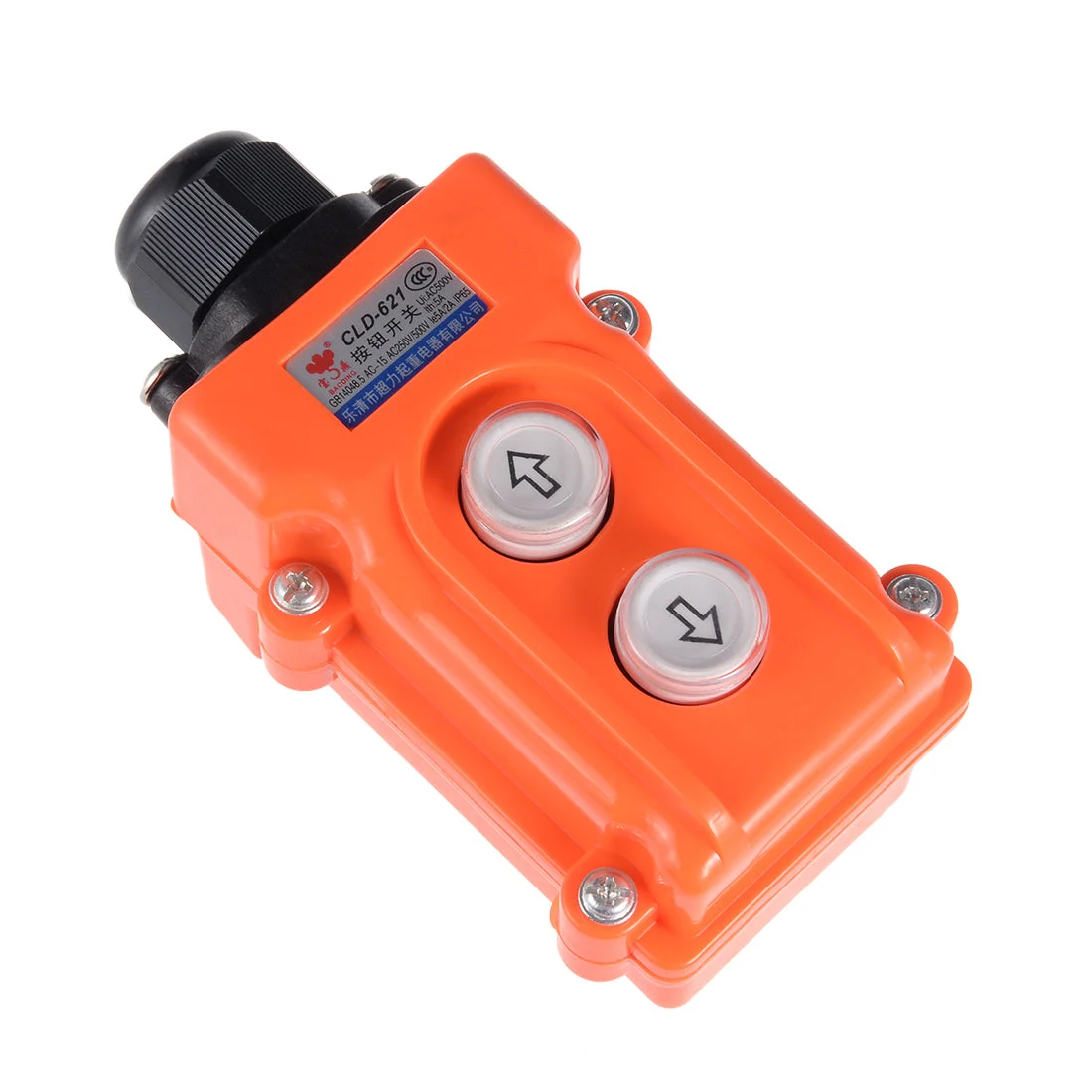

Hoist Crane Pendant Control Station ABS Push Button Switch 2 Ways

About this item

• Product Name: Hoist Crane Pushbutton Switch;Push Buttons: 2 Ways: Up, Down
• Model: CLD-621;Operation Type: Momentary; Material: ABS,Metal
• Package Content: 1 x Hoist Crane Pushbutton Switch; Ui: AC 500V;Ith: 5A
• Total Size: 13.8 x 7.6 x 7.2cm / 5.4” x 3″ x 2.8″ (L*W*H)
• Suitable for open-air, rain and snow, and more dust against the environment, such as remote control of cranes, electric hoist and other equipment used.

Features:

Model: CLD-621

Operation Type: Momentary

Material: ABS,Metal

Ui:AC 500V

Ith: 5A

AC-15:AC250V/500V Ie 5A/2A

Push Buttons: 2 Ways: Up, Down

Total Size: 13.8 x 7.6 x 7.2cm / 5.4-inch x 3-inch x 2.8-inch (L*W*H)

Descriptions:

Features: Up, Down 2 push buttons.

ABS housing, waterproof.

Suitable pendant control station for Hoist and Crane.

Instructions for use:

1.Remove the end caps, install the sealing sheaths, and fasten them to the end faces of the buttons by screws

2.Remove the bottom cover, put all the control wires into the sealing sheath, and fasten them to the terminals of each button according to the electrical schematic.

3.Check or test the wiring is correct. If everything is normal, bundle the leads and fix them, and finally reinstall the bottom cover.
