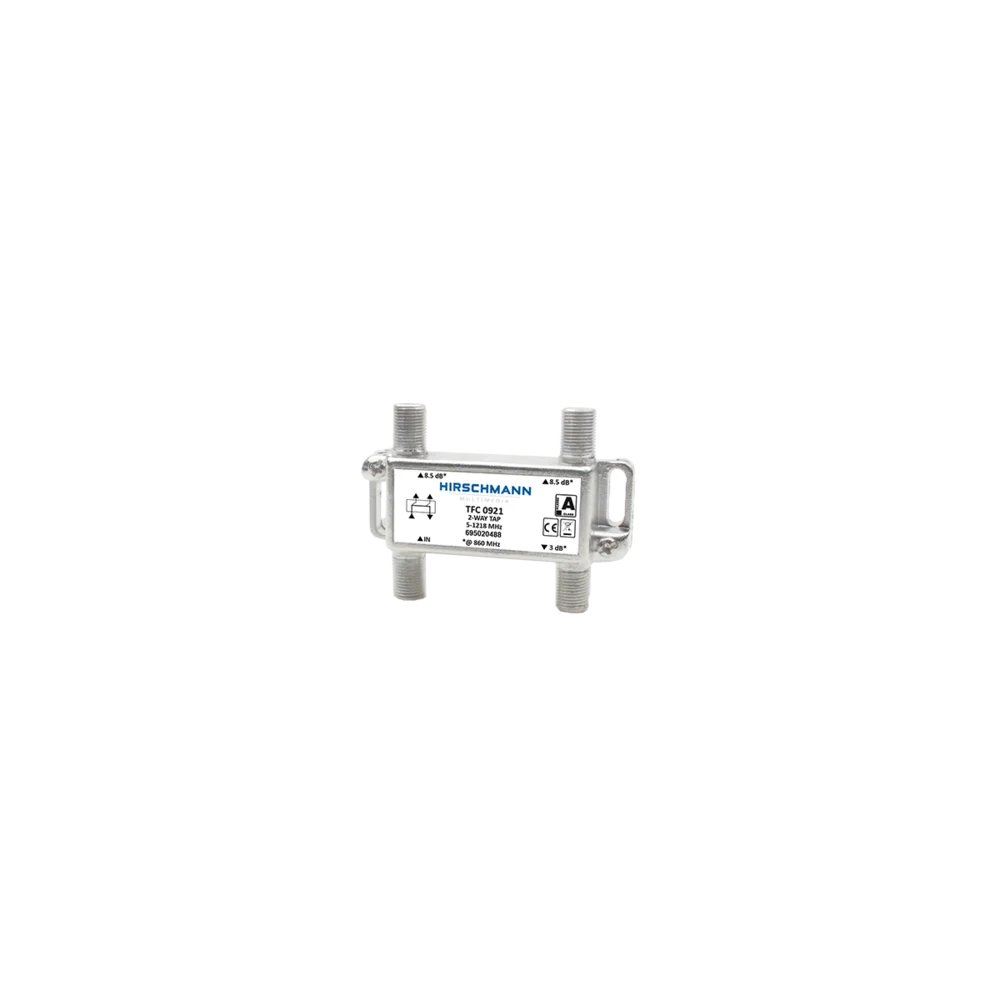

The TFC 0921 is a dual off-take element with 9 dB attenuation at the off-take outputs and 3 dB attenuation at the loop-through output. This tap offers high isolation between the outputs and very good shielding to guarantee the quality of the signal and keep unwanted 4G signals out.
Our taps are equipped with a grounding connection. All our taps (AFC, TFC, and MFC) and distributors (VFC, DFC) support return traffic.
The off-take elements from the TFC series are available with different attenuations and with different numbers of outputs.
The taps from the TFC series are suitable for use up to 1.2 GHz and are thereby prepared for DOCSIS 3.1 technology.
Specifications
Connection type : F-Connector
Model : Splitter
Frequency (MHz) : 5 MHz to 1218 MHz
Max. tap/splitter loss (dB) : 8.5
Max. transmission loss (dB) : 4.3
Number of branches : 2
Number of outputs : 1
Suitable for remote power supply : No
