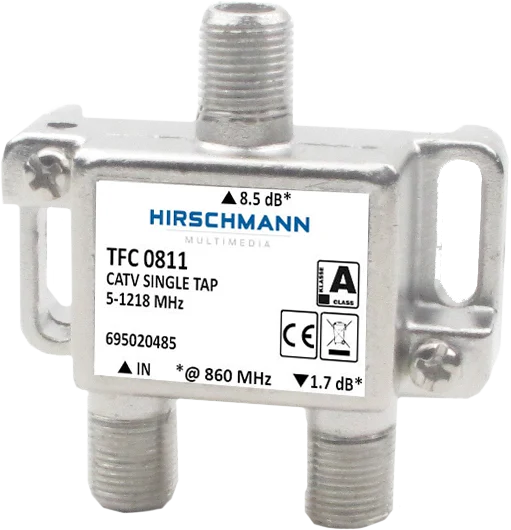

TFC 0811 is a single tap-off element with 8.5 dB attenuation on the tap output and 1.7 dB attenuation on the loop output. This tap has high isolation between the outputs and very good shielding to ensure the quality of the signal and keep unwanted 4G signals out. Our taps come with a grounding connection.
All our taps (AFC, TFC and MFC) and splitters (VFC, DFC) support return traffic. The tap-off elements from the TFC series are available with different attenuations and with different numbers of outputs.
The taps from the TFC series are suitable for use up to 1.2 GHz and are therefore prepared for DOCSIS 3.1 technology.
Specifications
Connection type : F-Connector
Model : Splitter
Frequency (MHz) : 5 MHz to 1218 MHz
Max. tap/splitter loss (dB) : 8.5
Max. transmission loss (dB) : 2
Number of branches : 1
Number of outputs : 1
Suitable for remote power supply : No
