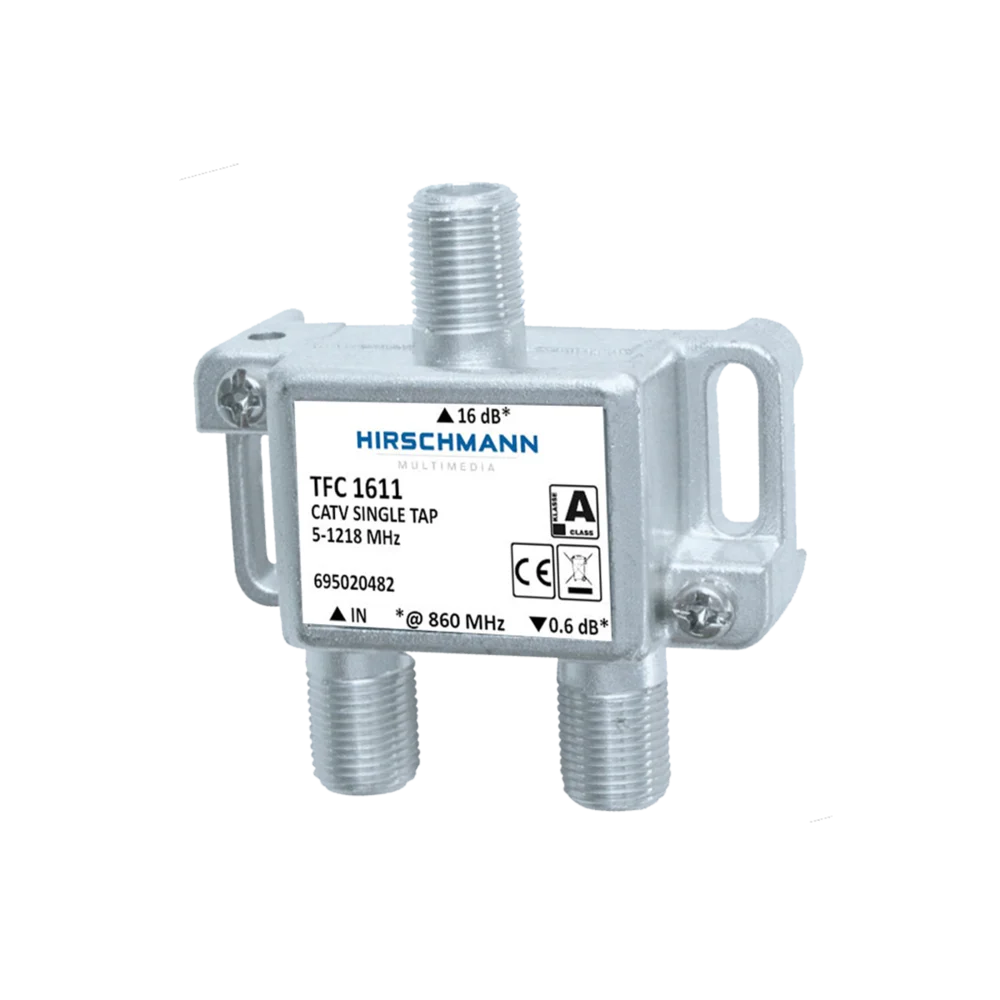

TFC 1611 is a single take-off element with 16 dB attenuation on the take-off output and 0.7 dB attenuation on the loop-through output. This tap has high isolation between the outputs and very good shielding to ensure the quality of the signal and to keep out unwanted 4G signals.
Our taps are equipped with a connection for grounding. All our taps (AFC, TFC and MFC) and distributors (VFC, DFC) support return traffic. The take-off elements from the TFC series are available with different attenuations and with different number of outputs.
The taps from the TFC series are suitable for use up to 1.2 GHz and are thus prepared for DOCSIS 3.1 technology.
Specifications
Connection type : F-Connector
Model : Splitter
Frequency (MHz) : 5 MHz to 1218 MHz
Max. tap/splitter loss (dB) : 16
Max. transmission loss (dB) : 1
Number of branches : 1
Number of outputs : 1
Suitable for remote power supply : No
