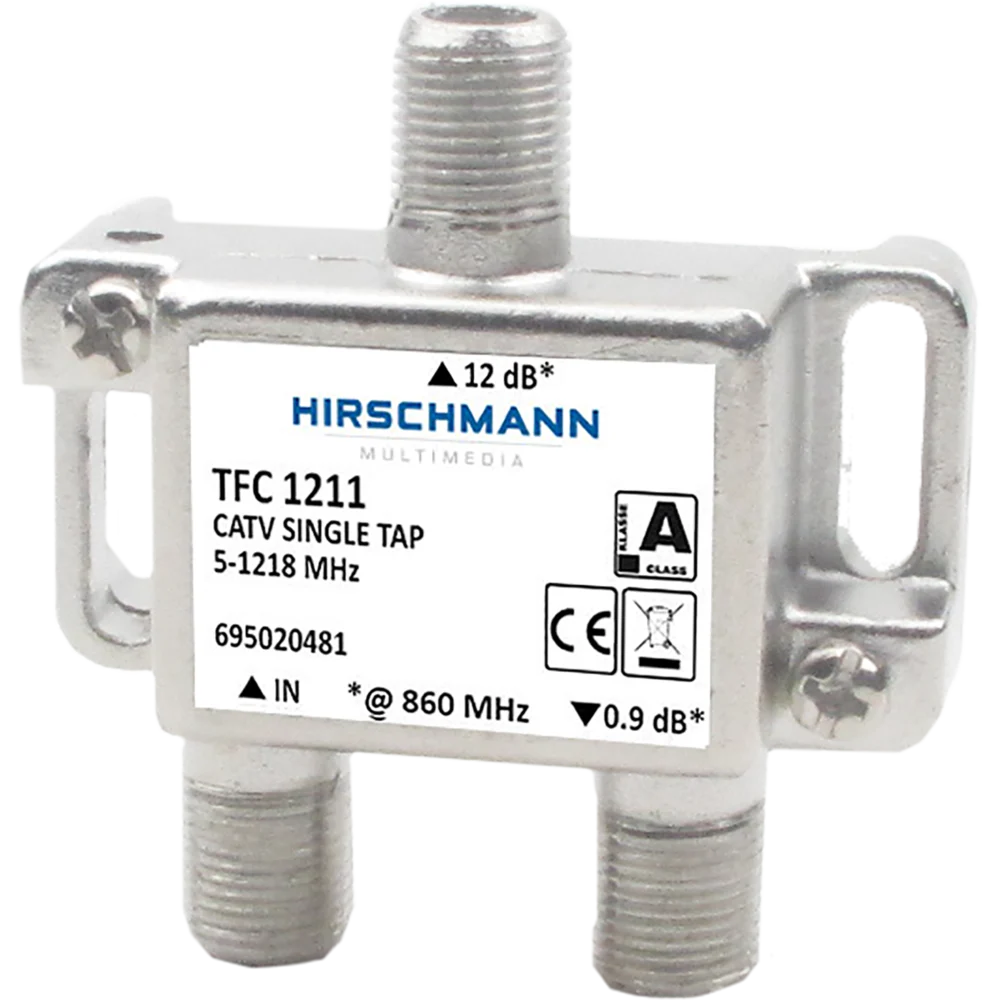

TFC 1211 is a single take-off element with 12 dB attenuation on the take-off output and 0.9 dB attenuation on the loop-through output. This tap has high isolation between the outputs and excellent shielding to ensure the quality of the signal and keep unwanted 4G signals out. Our taps are equipped with a grounding connection.
All our taps (AFC, TFC and MFC) and dividers (VFC, DFC) support return traffic. The take-off elements from the TFC series are available with different attenuations and with different number of outputs.
The taps from the TFC series are suitable for use up to 1.2 GHz, and are thus prepared for DOCSIS 3.1 technology.
Specifications
Connection type : F-Connector
Model : Splitter
Frequency (MHz) : 5 MHz to 1218 MHz
Max. tap/splitter loss (dB) : 12
Max. transmission loss (dB) : 1.2
Number of branches : 1
Number of outputs : 1
Suitable for remote power supply : No
