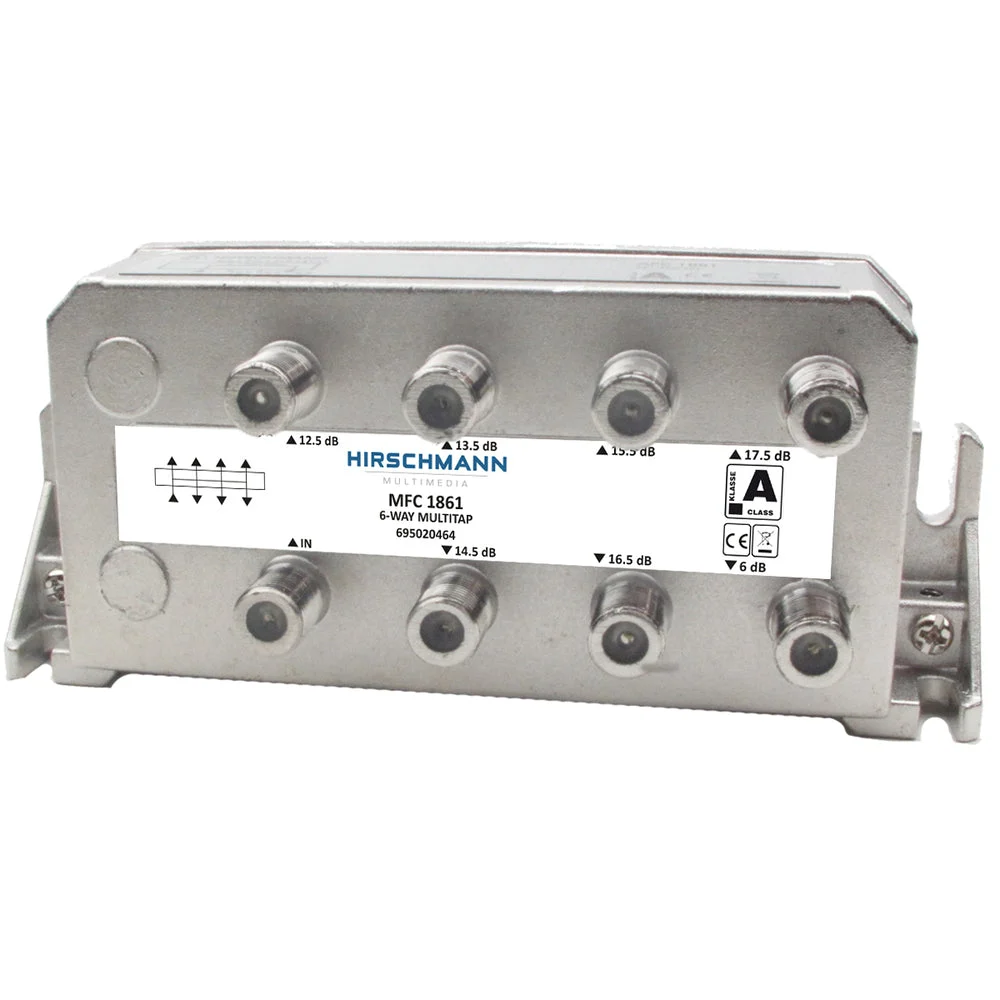

The MFC 1861 six-way multitap with increasing attenuation on the branch outputs from 12.5 to 17 dB and 6 dB attenuation on the loop-through output. This tap has high isolation between the outputs and good shielding to ensure signal quality. Our taps are equipped with a connection for grounding. All of our taps and manifolds support return traffic. Unused outputs should be sealed with a termination resistor.
Specifications
Connection type : F-Connector
Model : Splitter
Frequency (MHz) : 5 MHz to 1218 MHz
Max. tap/splitter loss (dB) : 18
Max. transmission loss (dB) : 6
Number of branches : 6
Number of outputs : 1
Suitable for remote power supply : No
