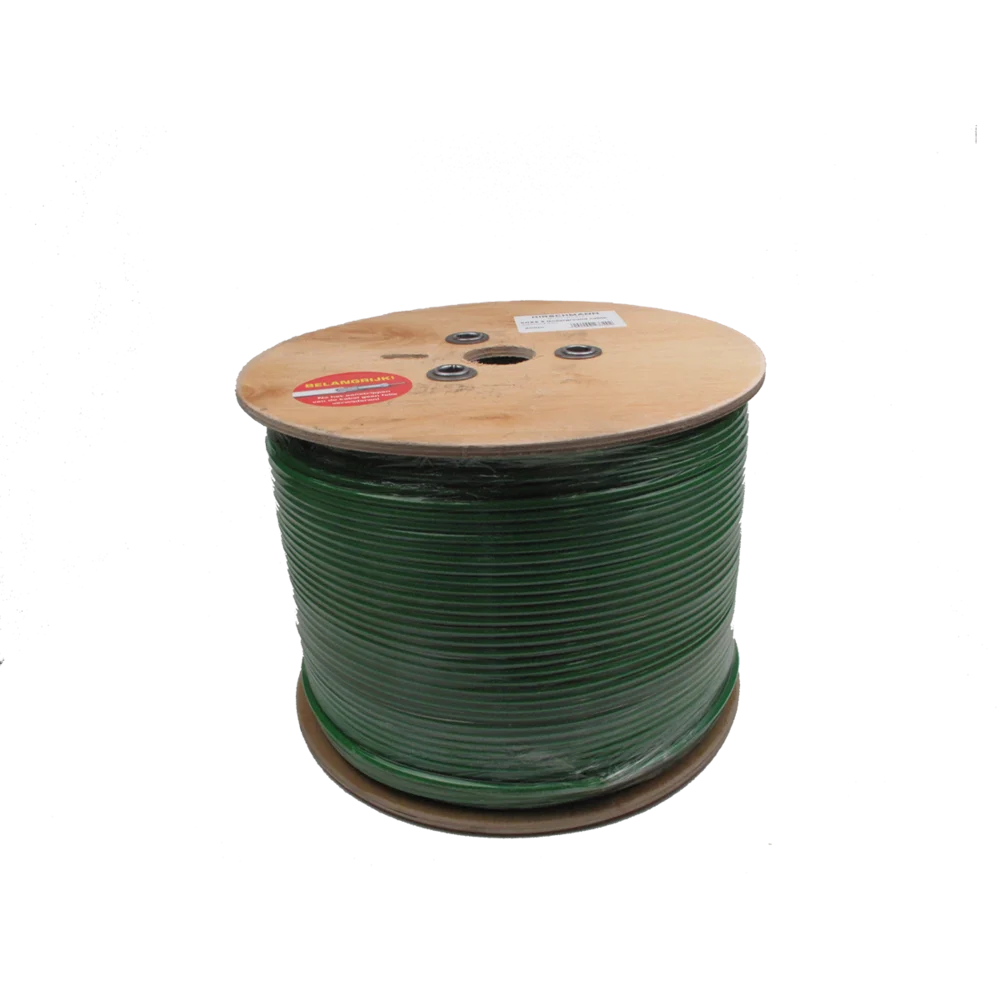

Hirschmann Multimedia Coaxial Cable – 695004556 [500 Meters]

Hirschmann Multimedi coaxial cable, cable type coax 9, sheath green, inner conductor class 1 = solid, CPR Euro fire class vlgs EN 13501-6 fca, shielding 2-fold, ground cable, sheath material polyethylene (PE), outer diameter 7mm, inner conductor diameter 1.05mm, processing in earth/substrate.

Specifications

Diameter inner conductor (mm) : 1.05
Inner conductor material : Copper
Inner conductor surface : Bare
Inner conductor category : Class 1 = solid
Diameter outer conductor (mm) : 4.9
Outer conductor material : Copper
Outer conductor surface : Bare
Type of outer conductor : Foil + braiding
Dielectric : Solid PE (HD-PE)
Number of screen layers : 2
Specification material outer sheath : Polyethylene (PE)
Color outer sheath : Green
Reaction-to-fire class according to EN 13501-6 : Fca
UV resistant : No
Characteristic impedance (Ohm) : 75
Outer diameter approx. (mm) : 7
Min. permitted bending radius, moving application with forced guidance (mm) : 70
Min. permitted bending radius, moving application/free movement (mm) : 140
Min. permitted bending radius, stationary application/permanent installation (mm) : 70
Suitable for underground installation : Yes
Permitted cable outer temperature during assembling/handling (°C) : -5 °C to 50 °C
Permitted cable outer temperature after assembling without vibration (°C) : -5 °C to 50 °C
