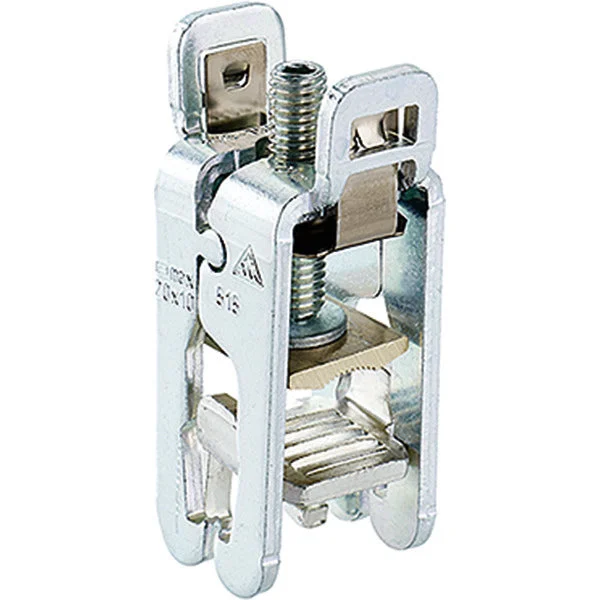

Hensel Terminal Clamp For Rail Cu/Alu 35-150mm – KS 150 F

The Hensel ENYSTAR connection clamp for power rail is rated up to 250A, with a power rail thickness of 5mm and width of 12mm. The clamp, which is 28mm wide, is suitable for connecting flat, round, and sector cables. It can accommodate a single core with a maximum cross-sectional area of 150mm². The product also includes direct connection clamps for 5 and 10 mm rail systems, suitable for both copper and aluminum wires ranging from 35-150 mm².

Specifications

Busbar thickness (mm) : 5 mm to 5 mm
Busbar width (mm) : 12 mm to 12 mm
Suitable for : Flat rail
Width clamp (mm) : 28
Max. conductor cross section (mm²) : 150
Suitable for round conductor connection : Yes
Suitable for sector conductor connection : Yes
Suitable for strip conductor connection : Yes
