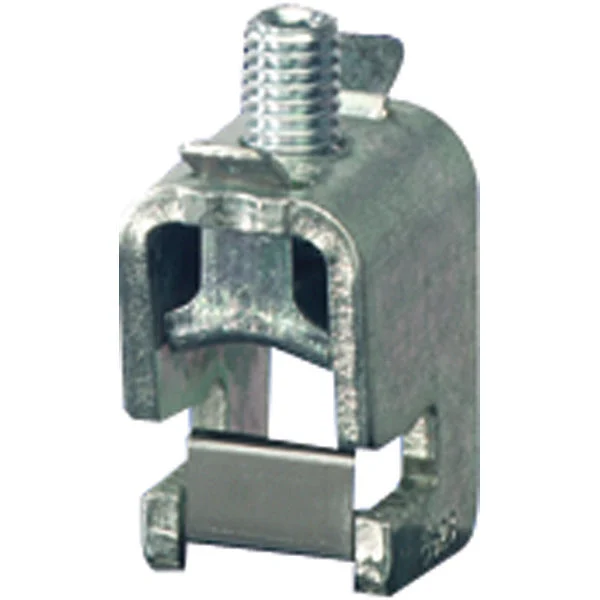

Hensel Rail Terminal Clamp 70mm Copper Flex 16-70mm 100-160A – KS 70 F

The Hensel Mi splitter connecting clamp is specifically designed for power rails with a maximum of 250A. The power rail thickness is ideally 5mm, and the power rail width is negotiable between 12 – 30mm. The clamp supports a single wire and has a width of 21mm. It’s suitable for connection with flat, round, and sector conductors, with a maximum conductor cross-section of 70mm². The product also features direct connecting clamps for a 5mm rail system of copper conductors, covering 16-70 mm², and works with a flexible rail copper VS 100 and VS 160.

Specifications

Busbar thickness (mm) : 5 mm to 5 mm
Busbar width (mm) : 12 mm to 30 mm
Suitable for : Flat rail
Width clamp (mm) : 21
Max. conductor cross section (mm²) : 70
Suitable for round conductor connection : Yes
Suitable for sector conductor connection : Yes
Suitable for strip conductor connection : Yes
